Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of combine chains c210af1 in China, featured by quality products and good service. If you're going to wholesale advanced combine chains c210af1 made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

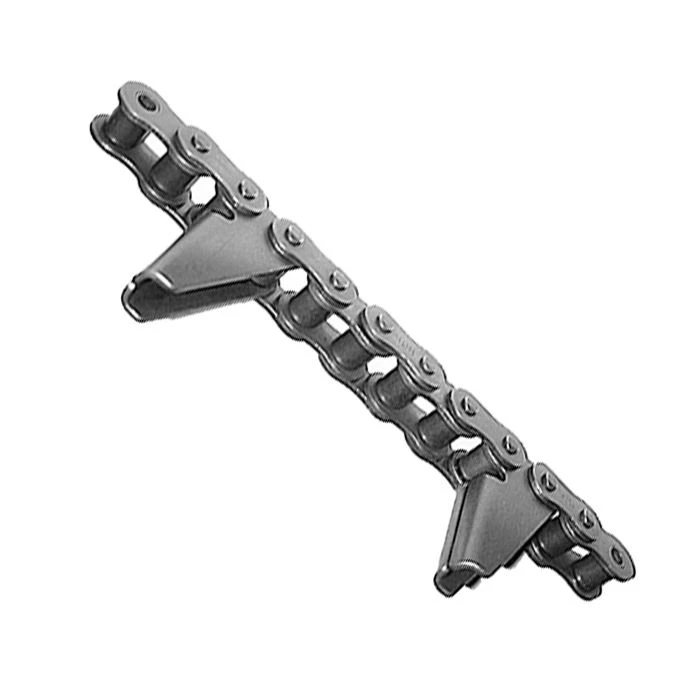

Technical Specifications
| Chain No. | C210AF1 |
| Type | Agricultural Combine Roller Chain (with AF1 attachments) |
| Standard | ISO / ANSI / GB |
| Application | Combine harvesters, feeder houses, grain conveyors, agricultural elevators |
Dimensions (mm)
|
Pitch (P) |
31.75 mm (1.25") |
|
Roller diameter (d1) |
10.16 mm |
|
Width between inner plates (b1) |
9.40 mm |
|
Pin diameter (d2) |
5.08 mm |
|
Pin length (L) |
20.7 mm |
|
Pin length (Lc, over attachments) |
23.3 mm |
|
Inner plate depth (h2) |
15.0 mm |
|
Plate thickness (T) |
2.03 mm |
|
Weight per meter |
≈ 0.85 kg/m |
Strength
Ultimate tensile strength (Qmin): 54.0 kN / 12,140 lbf
Average tensile strength (Q0): 28.5 kN
Material & Construction
Material: High‑grade carbon steel / alloy steel
Heat treatment: Carburized pins, bushes & rollers; shot‑blasted plates
Attachments: AF1 (single bent tabs on one side, standard for combine feeder applications)
Surface finish: Black oxide / oiled for corrosion resistance
Feature
C210AF1 combine chain is specially engineered for agricultural harvesters and farm machinery. It adopts a reinforced overall structure with thickened link plates, solid pins and durable bushings, delivering excellent tensile strength and heavy-load resistance.
The optimized gap design effectively prevents crop residues, soil and straw from clogging, ensuring smooth operation in harsh farm environments. All key components undergo professional heat treatment to enhance wear resistance and impact resistance.
This chain is precisely manufactured to meet standard dimensions for easy installation and perfect sprocket meshing. With reliable stability and long service life, it needs only simple daily maintenance, making it a durable choice for agricultural harvesting equipment.
