Leaf Chain
Lifting & Material Handling Solutions
Professional Heavy-Duty Leaf Chain Solutions for Lifting & Material Handling
As an ISO 9001:2015 certified industrial manufacturer, we specialize in engineering heavy-duty leaf chain assemblies built to deliver exceptional tensile strength, fatigue resistance, and operational safety in critical load-bearing applications. Utilizing high-precision stamping, controlled heat treatment, and automated assembly processes, our products are engineered for forklift mast systems, overhead crane counterweights, automated storage and retrieval systems (ASRS), and heavy-duty lifting platforms.
ISO 9001:2015 Certified ANSI & ISO/DIN Standards Mill-Direct Supply
-
![Forklift Chain]()
-
![Hollow Pin Leaf Chain]()

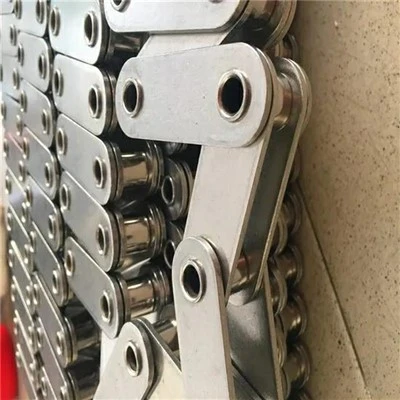

Hollow Pin Leaf ChainLF36 hollow pin leaf chain is a high-strength lifting chain with a unique hollow pin design. Made of premium alloy steel, all components are precision machined and heat-treated to deliver...read more -
![Car Parking Chains]()
Car Parking ChainsProduct name：Car parking chainsread more
Rows : Simplex
Product number：16ALT-1 16ALT-2 20ALT-1 20ALT-2 24ALT-1 24ALT-2
Pitch range:24.5mm 31.75mm 38.1mm
Product grouping：Leaf Chain -
![BL Series Leaf Chain]()

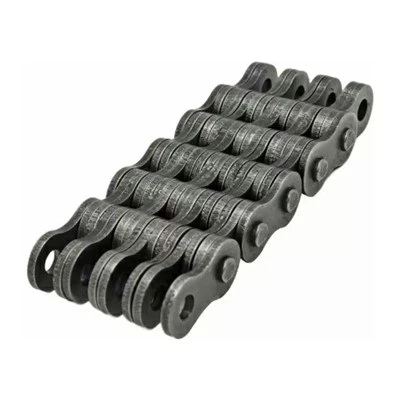

BL Series Leaf ChainProduct name：ISO Standard Leaf Chains/BL series leaf chainread more
Product number：BL422-BL488/ BL522-BL588/BL622-BL688/BL822-BL888...
Product grouping：Hoisting Chains
Use：Transmission... -
![AL Series Leaf Chain]()
AL Series Leaf ChainProduct name：ISO Standard Leaf Chains/AL series leaf chainread more
Product number：AL322/ AL422/ AL522/ AL622/ AL822/ AL1022/ AL1222/ AL1444/ AL1644/
Product grouping：Hoisting... -
![LL Series Leaf Chain]()
LL Series Leaf ChainLL Series Leaf Chains – Standard Models & Technical Parametersread more
(ISO 4347 / DIN 8152, Light-Duty Leaf Chains)
LL series are light-duty leaf chains for lifting/balancing (forklifts,... -
![Rollerless Hoisting Chain]()

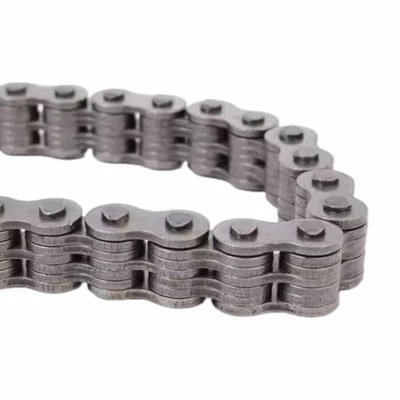

Rollerless Hoisting ChainConstruction: Rollerless, solid bushing, single row.read more
Material: High‑strength alloy steel, heat‑treated.
Application: Forklift masts, hoists, cranes, elevators, mining machinery
Key Features
Designed exclusively for reciprocating tension and high-load lifting rather than power transmission, our leaf chain products incorporate critical structural enhancements to assure long-term reliability:
High Static Load Capacity & Shock Resistance
Engineered with dense link plate lacing combinations (e.g., 2×2, 4×4, 6×6, or 8×8), multi-plate construction distributes peak static tension across multiple shear planes.
Extended Fatigue Life via Hole Ball-Burnishing
High-stress pitch holes are processed through a precision ball-burnishing operation, introducing residual compressive stress and extending fatigue cracking resistance by up to 25%.
High Safety Factor Compliance
Formulated to meet or exceed ANSI (AL Series) and ISO/DIN (LH/BL Series) standard safety margins, providing predictable performance reserves.
Precision Pin Joint Durability
Premium alloy steel pins are surface-carburized and precision-ground to achieve high surface hardness, resisting joint galling and premature elongation.
Technical Specifications & Lacing Configurations
Our tension chains are manufactured to international standards (ANSI B29.8, ISO 4347, and DIN 8152), ensuring full dimensional interchangeability with major material handling equipment brands.
| Technical Parameter | Standard Specification Range | Engineering & Safety Significance |
|---|---|---|
| Chain Pitch Range | 0.500 in (12.70 mm) – 2.000 in (50.80 mm) | Determines sprocket-less sheath dimensions and lifting geometry |
| Lacing Combinations | 2×2, 2×3, 3×4, 4×4, 6×6, 8×8 | Adjusts tensile area and overall chain width to match target load requirements |
| Pin Surface Hardness | 58–62 HRC (Case Depth: 0.8–1.8 mm) | High surface hardness resists localized wear and joint shearing |
| Plate Thickness Range | 1.5 mm – 7.2 mm | Defines overall yield point and ultimate tensile strength (UTS) limits |
| Ultimate Tensile Strength (UTS) | Up to 1,200 kN (Depending on Pitch & Lacing) | Verified via destructive pull-testing to validate minimum load ratings |
Primary Industrial Applications
Our leaf chain assemblies are widely trusted across critical load-bearing and vertical lifting systems:
Forklift Mast Assemblies
High-load mast chains for reach trucks, counterbalanced forklifts, and heavy-duty container handlers.
Crane Counterweight & Hoists
Flexible tension linkages for mobile cranes, tower cranes, and industrial winches.
Automated Storage (ASRS)
High-cycle vertical lift chains used in automated warehouse stacker cranes.
Metallurgical & Hydraulic Lifts
Heavy lifting tables, furnace door counterweights, and steel mill coil handlers subject to continuous vertical motion.
Precision Manufacturing Process & Quality Control
To maintain structural uniformity across every batch, every leaf chain strand undergoes a rigorous multi-stage manufacturing sequence:
Fine-Blanking of Link Plates
Raw alloy steel strip coil is stamped using high-tonnage fine-blanking presses, yielding smooth edge surfaces free of micro-fractures.
Hole Ball-Burnishing & Peening
Pitch holes are mechanically burnished for dimensional stability, followed by high-intensity shot peening to elevate fatigue resistance.
Controlled Heat Treatment
Link plates and pins pass through continuous mesh-belt carburizing and tempering furnaces to establish optimal core toughness and surface hardness.
Automated Assembly & Pre-Stretching
Automated riveting ensures uniform pin head formation, followed by 100% factory pre-stretching at preset load thresholds to eliminate early operational elongation.
Leaf Chain vs. Standard Roller Chain Comparison
While standard roller chains rely on bushings, rollers, and sprockets to transmit rotational power, heavy lifting requires dedicated leaf chain architectures built for pure linear tension:
Elimination of Rollers & Bushings
Consisting solely of interleaved link plates and continuous pins, the structure maximizes cross-sectional steel area within a compact space envelope.
Superior Static Load Density & Motion
Yields up to 150–200% higher ultimate tensile strength compared to standard roller chains, optimized to articulate smoothly over sheaves rather than sprockets.
FAQ
Q1: How do I select the correct leaf chain for my forklift mast application?
A: Selection depends on maximum rated lift capacity, working velocity, mast geometry, and mounting clevis design. Cross-reference the required pitch and lacing configuration (e.g., BL644 vs. AL644) against OEM load charts.
Q2: What is the structural difference between AL Series and BL Series chains?
A: AL Series chains utilize lighter link plates matching American roller chain dimensions for light-to-medium duty, whereas BL Series chains feature thicker link plates and larger pin diameters designed for heavy-duty lifting and elevated fatigue resistance.
Q3: Can I increase my lift system capacity simply by adding more plate lacings (e.g., upgrading from 4×4 to 6×6)?
A: Increasing lacing density raises ultimate tensile strength, but overall system safety depends on matching the pin shear capacity, clevis width, and sheave geometry. Consult engineering guidelines before modifying factory specifications.
Q4: How do I measure chain pitch accurately on a worn installation?
A: Measure the distance across 10 to 20 pin centers using a digital vernier caliper under light tension, then divide by the number of pitches to calculate average pitch and check for elongation.
Q5: Are custom clevis end-anchors and custom pin profiles available for special mast designs?
A: Yes, we engineer custom-machined end clevises, threaded anchors, and specialized master pins according to client CAD drawings or physical samples.
Q6: What working safety factor is recommended for lifting applications?
A: Industrial machinery guidelines typically mandate a minimum static safety factor of 5:1 to 7:1 relative to Ultimate Tensile Strength (UTS), while passenger or overhead personnel lifting may require higher margins based on local regulations.
Q7: How is minimum ultimate tensile strength (UTS) verified?
A: Destructive tensile pull tests are performed on sample strands from each production lot using a calibrated 100-ton hydraulic tensile testing bed.
Q8: What load limits apply when operating under low or high ambient temperatures?
A: Standard alloy chains operate reliably between -10°C and 150°C. For sub-zero cold storage or high-heat metallurgical environments, specialized alloy selection and heat treatment prevent cold-brittleness or thermal softening.
Q9: How does factory pre-stretching improve operational safety?
A: Pre-stretching seats the pin-plate contact surfaces under controlled load, removing mechanical initial bedding slack and reducing the need for frequent post-installation adjustments.
Q10: What certification documents accompany export shipments?
A: Shipments include Mill Test Reports (MTRs), dimensional inspection sheets, certificate of conformity (CoC), and proof-load testing summaries.
Q11: What is the maximum allowable chain elongation before replacement is required?
A: In forklift and lifting applications, a chain should generally be retired and replaced when pitch elongation reaches 2% to 3% over nominal length, as excessive elongation compromises fatigue integrity.
Q12: How often should lift chain assemblies undergo safety inspections?
A: Visual inspections for lubrication, surface rust, and plate misalignment should occur daily or weekly, with detailed dimensional gauge checks conducted every 2,500 operating hours or annually.
Q13: What visual signs indicate immediate chain rejection?
A: Cracked link plates, turned pins, cracked pin heads, severe surface pitting from corrosion, or localized galling require immediate removal from service.
Q14: Why is partial section replacement discouraged on worn lift chains?
A: Mixing new and worn chain segments causes uneven load distribution across joints, leading to accelerated fatigue and failure of the older or newly overloaded links. Always replace chains in full pairs or complete strands.
Q15: How do environment and duty cycles impact chain fatigue life?
A: Exposure to corrosive chemicals, moisture, or severe shock loads reduces fatigue endurance limits, requiring shorter inspection intervals and specialized protective coatings.
Q16: What type of lubricant is best suited for heavy-duty lifting chains?
A: High-viscosity non-detergent petroleum-based oils or synthetic lubricants with penetrating anti-wear additives are recommended to ensure oil reaches inner pin-plate articulation surfaces.
Q17: Is grease an acceptable substitute for oil lubrication?
A: Heavy outer grease application is generally discouraged because it forms an external barrier that prevents lubricant from penetrating into pin joints while trapping abrasive dust on outer surfaces.
Q18: How should chains operating in dusty or abrasive environments be lubricated?
A: Use dry-film PTFE or wax-based lubricants that penetrate internal joints without leaving a sticky surface film that attracts dirt and grit.
Q19: Can zinc or nickel plating be applied to improve corrosion resistance?
A: Yes, specialized plating (such as electroless nickel or proprietary anti-corrosion coatings) can be applied. Baking procedures are conducted after electroplating to prevent hydrogen embrittlement.
Q20: What packaging is used to protect chains against moisture during ocean transit?
A: Export chains are treated with heavy rust-inhibiting oil, sealed inside vapor-corrosion-inhibitor (VCI) polybags, and packed into reinforced wooden crates for international shipping.
Ready to Source Professional Leaf Chains?
Share your technical specifications, forklift mast details, or application drawings, and our engineering team will respond within 12 hours.
Contact Our Engineering Sales TeamAnhui Huihuang Chain Transmission Co., Ltd. is one of the most professional leaf chain manufacturers and suppliers in China, also supports high quality customized service. Please feel free to buy discount leaf chain made in China here from our factory. Welcome to contact us for pricelist and free sample.
