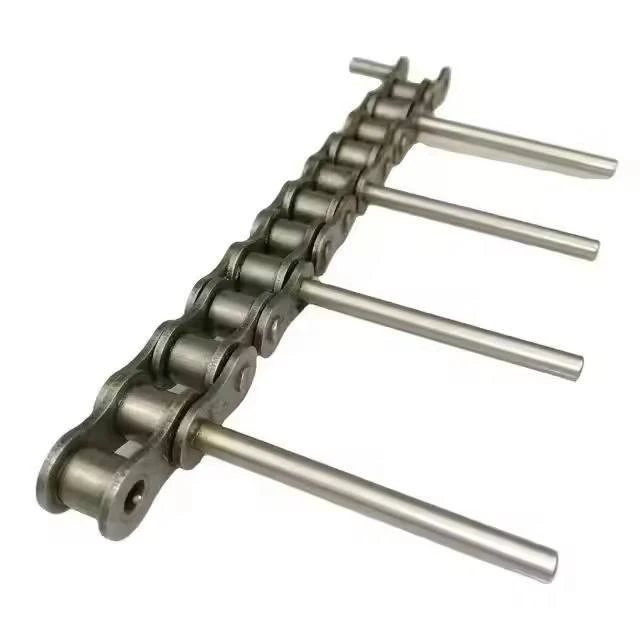

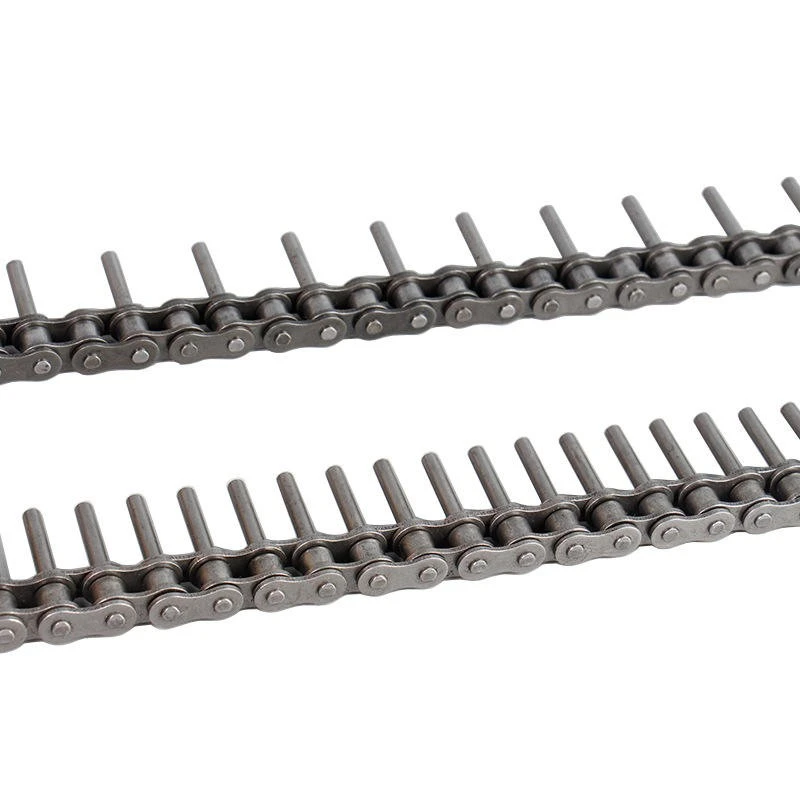

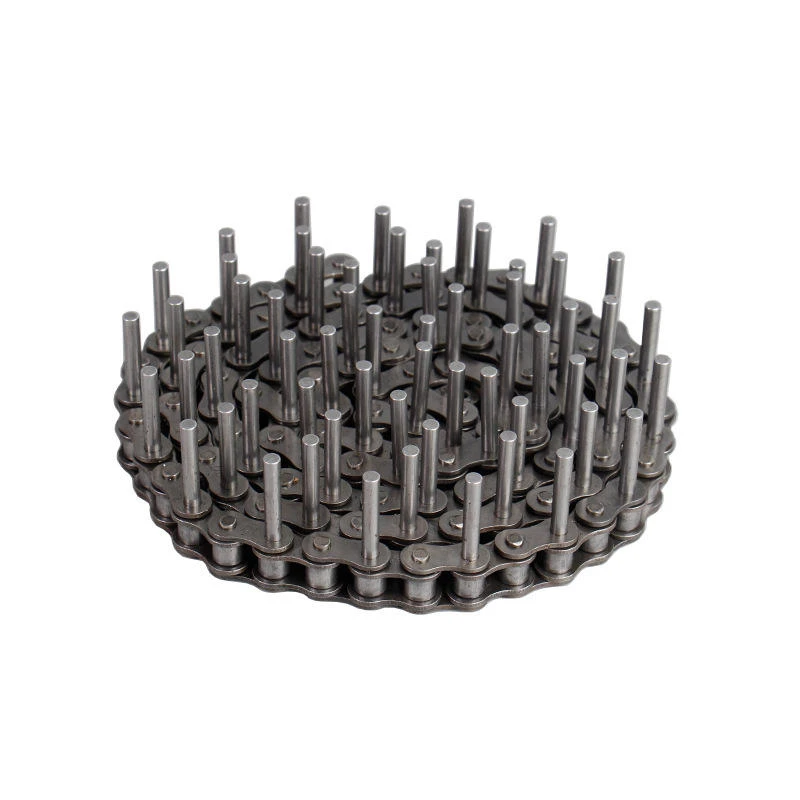

Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of 05b nickel-plated extended pin chain in China, featured by quality products and good service. If you're going to wholesale advanced 05b nickel-plated extended pin chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Technical Specifications
|
Parameter |
Specification |
Unit |
|
Chain Model |
05B (Nickel-Plated, Extended Pin) |
- |
|
Chain Type |
Roller Conveyor/Drive Chain |
- |
|
Pitch |
8 |
mm |
|
Roller Diameter (d1) |
5 |
mm |
|
Inner Width of Link (b1) |
3 |
mm |
|
Pin Diameter (d2) |
2.31 |
mm |
|
Inner Plate Height (h2) |
7.1 |
mm |
|
Material |
Carbon Steel with Nickel-Plated Finish |
- |
|
Ultimate Tensile Strength |
≥ 4.4 |
kN |
|
Allowable Working Load |
0.6–0.8 |
kN |
|
Weight per Meter |
≈ 0.18 |
kg/m |
|
Standard Compliance |
ISO 606, DIN 8187 |
- |
|
Extended Pin Length |
Customizable (standard options: 5/8/10/12 mm beyond plate surface) |
mm |
|
Corrosion Resistance |
Nickel-plated surface for anti-rust and mild corrosion resistance |
- |
|
Application |
Packaging machinery, conveyor lines, light-duty drive systems |
- |
Applications of 05B Nickel-Plated Extended Pin Chain
Packaging & Wrapping Machinery It is widely used in shrink wrapping machines, carton sealers, and bottle packaging lines. The extended pins act as pushers or locators to move bottles, boxes, or trays steadily through the production process, ensuring precise alignment.
Light-Duty Conveyor & Sorting Lines In small parts assembly, electronics manufacturing, and light food processing lines, the chain with extended pins is used to carry, index, or separate workpieces. Its nickel-plated surface offers mild corrosion resistance for clean, dry environments.
Beverage & Cosmetic Filling Lines It drives bottle indexing and conveying systems in low-speed filling and labeling equipment. The extended pins can engage with bottle bases or holders to ensure accurate positioning during filling, capping, and labeling.
General Industrial Automation Suitable for light-duty drive and conveying tasks in textile machinery, printing equipment, and small automated assembly systems. The extended pins enable custom attachments or fixturing for specialized material handling needs.
