Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of conveyor chain for cold drink production in China, featured by quality products and good service. If you're going to wholesale advanced conveyor chain for cold drink production made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Specifications (ISO Standard)
Main Dimensions (Unit: mm)
|
Parameter |
Symbol |
Dimension |
|
Chain Model |
- |
M28 Alloy |
|
Pitch |
P |
50 / 63 / 80 |
|
Roller Diameter |
d₁ |
30 |
|
Inner Width |
b₁ |
≥ 18.0 |
|
Pin Diameter |
d₂ |
≤ 7.0 |
|
Overall Pin Length |
L |
≤ 36.0 |
|
Side Plate Height |
h₂ |
≤ 21.0 |
|
Side Plate Thickness |
T |
≤ 3.0 |
Mechanical Properties
|
Item |
Specification |
|
Ultimate Tensile Strength |
≥ 42.0 kN |
|
Maximum Working Load |
11.0 – 12.5 kN |
|
Weight per Meter (Pitch 50mm) |
≈ 1.6 kg/m |

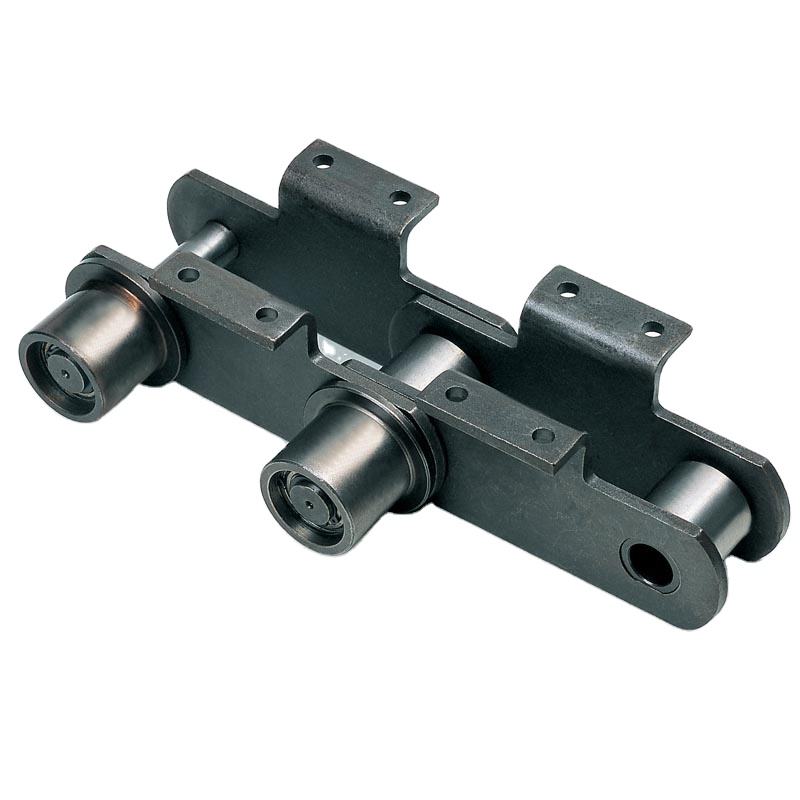

K2 Attachment Description
K2 is double-side bent attachment with 2 mounting holes on each side. It features firm installation and excellent stability, widely used for mounting bottle holders, pallets and standard conveying fixtures on beverage production lines.
Material & Surface Treatment
This chain is mainly made of premium high-strength alloy steel. Every component goes through complete professional heat treatment, which greatly enhances overall structural toughness and excellent wear resistance for long-term heavy-duty use. The standard surface adopts zinc plating treatment, delivering reliable anti-rust capability to defend against moisture and daily corrosion. For special working scenarios, we also provide optional 304 and 316 food-grade stainless steel versions. These variants fully comply with strict food processing hygiene standards, perfectly meeting the sanitary requirements of food-related industries.
Product Features
Compared with the conventional M28 chain, this upgraded alloy chain features improved load capacity and extended service life. It operates steadily with low noise during continuous running. Besides great corrosion resistance, it can also endure frequent washing on production lines. Thanks to its reliable and practical performance, it is an ideal transmission component for cold drink and food processing lines that require non-stop daily operation.
