Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of scraper conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced scraper conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Parameters
|
Parameter |
Specification |
|
Model |
FU270 Conveyor Chain |
|
Pitch (P) |
152.4 mm |
|
Roller Diameter (Dr) |
36 mm |
|
Pin Diameter (Dp) |
15.5 mm |
|
Inner Width (b1) |
36.5 mm |
|
Link Plate Thickness (t) |
8 mm |
|
Link Plate Height (h) |
50 mm |
|
Ultimate Tensile Strength |
≥ 240 kN |
|
Material |
40Cr / 45# Steel (Heat Treated) |
|
Surface Treatment |
Shot Blasting / Anti-Corrosion Coating |
|
Application |
FU270 En Masse Conveyor (for powder & granular material handling) |

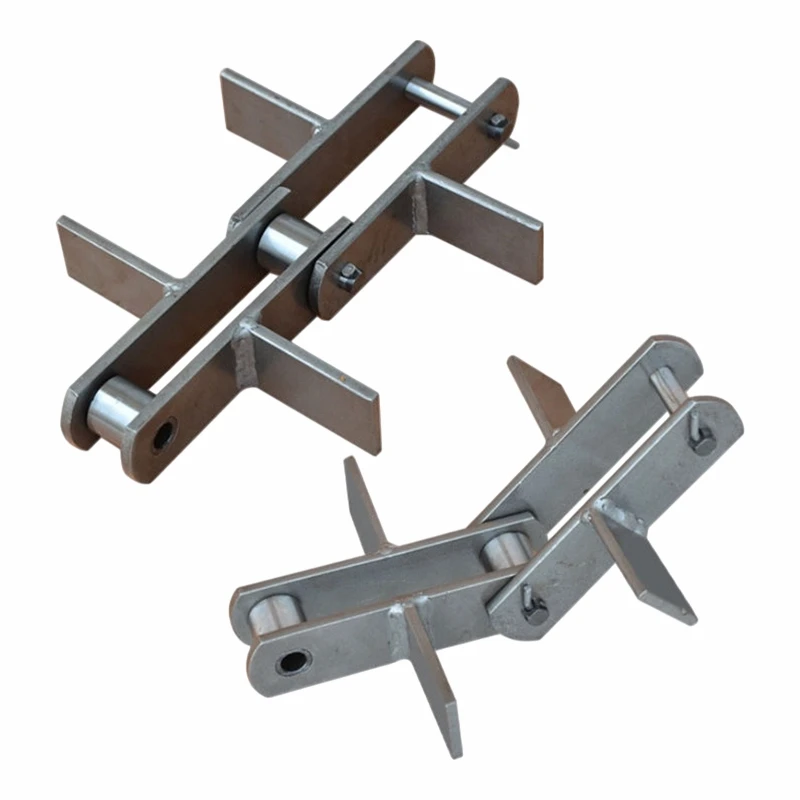

Chain Structure
FU270 scraper conveyor chain is a heavy-duty industrial conveying chain with integrated reinforced structure.
It consists of thickened link plates, solid pins, durable bushings and matched scraper accessories.
All key parts adopt high-strength alloy steel and undergo overall quenching heat treatment, greatly improving hardness and impact resistance.
The optimized gap design prevents material jamming and reduces operation friction.
The detachable scraper is firmly installed on chain side plates, featuring high connection stability.
Besides, the sealed structure can block dust and fine particles, avoiding internal component abrasion and chain stuck failure.
Application
Designed for powdery and granular bulk material transportation, FU270 chains are widely applied in heavy industrial conveying systems. They are mainly used for ash and slag transportation in thermal power plants, raw material delivery in cement factories and metallurgical workshops. Moreover, they suit chemical plants, grain depots and building material industries to convey coal powder, grain, mineral powder and industrial waste residue. Adapted to dusty and high-load harsh environments, this chain has low maintenance cost and long service life. It has become the core transmission part of FU series scraper conveyors for bulk material handling.
