Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of side bow chains in China, featured by quality products and good service. If you're going to wholesale advanced side bow chains made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Parameter Table
|
Name |
Side bow chains /Side bow chains with attachments 43SBF11/43SBF12/43SBF13 |
|
Material |
Stainless Steel |
|
Surface Treatment |
Oil Blooming |
|
Chain Size |
1/2"*3/32" |
|
Feature |
Heat Resistant, Enlarged gap between inner/outer plates and pin sleeve for better lateral bending and twisting resistance. |
Huihuang chain NO:
|
Chain No. |
Pitch P(mm) |
Roller diameter d1 max(mm) |
|
40SB |
12.7 |
7.95 |
|
43SB |
12.7 |
7.95 |
|
50SB |
15.875 |
10.16 |
|
60SB |
19.05 |
11.91 |
|
63SB |
19.05 |
11.91 |
|
80SB |
25.4 |
15.88 |
|
#06BSBF1 |
9.525 |
6.35 |
|
08BSB |
12.7 |
8.51 |
|
08BSBF1 |
12.7 |
8.51 |
|
10BSB |
15.875 |
10.16 |
|
12BSB |
19.05 |
12.07 |
|
16BSB |
25.4 |
15.88 |
|
16BSBF3 |
25.4 |
15.88 |
|
#C24BSB |
38.1 |
25.4 |
|
#C2050SB |
31.75 |
10.16 |
|
#C2060SBF1 |
38.1 |
11.91 |
|
#C2062F6SB |
38.1 |
22.23 |
Side Bow Chain Works

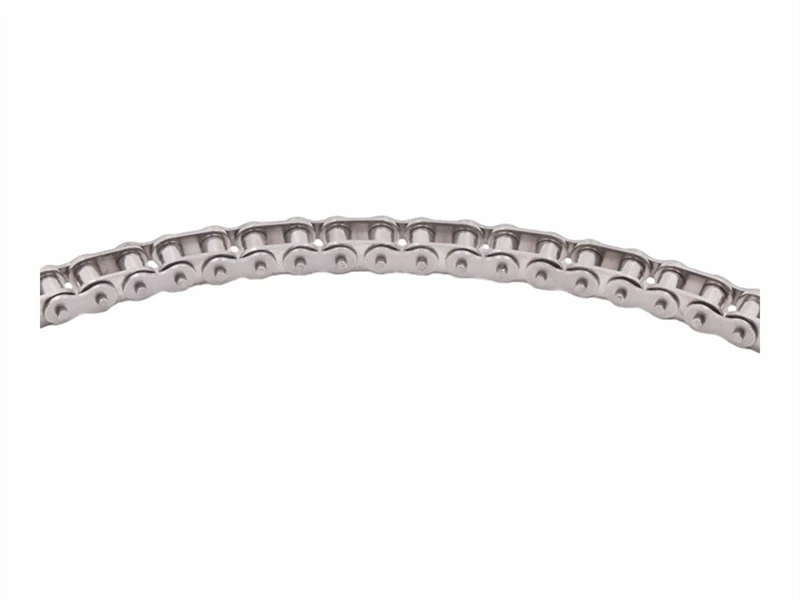

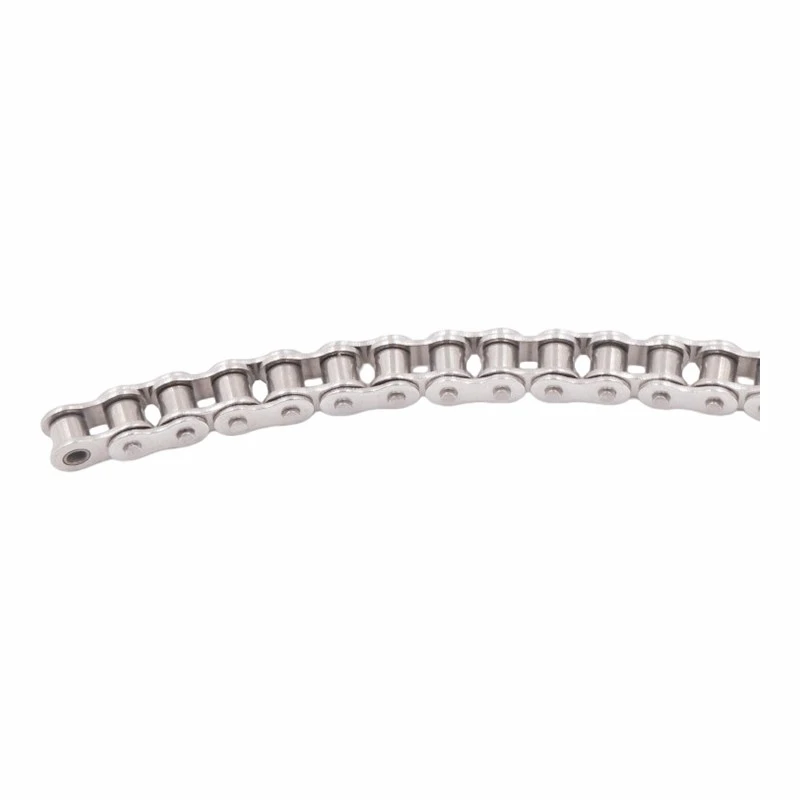

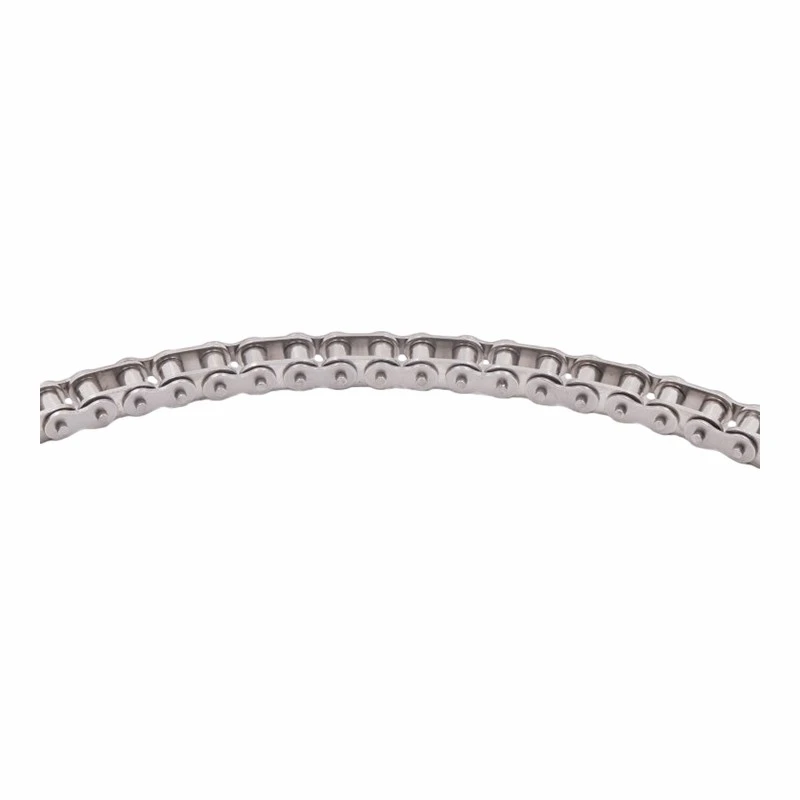

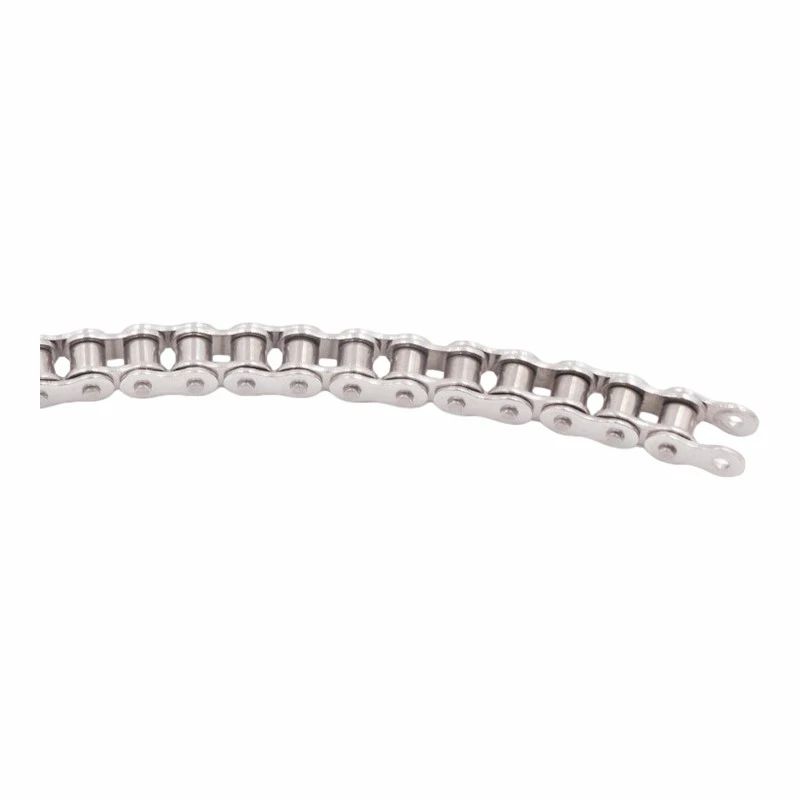

Unlike standard roller chains, side bow chain is built with specially engineered clearances between its inner and outer links.
This one-of-a-kind design lets the chain bend both in the standard operating plane (just like a regular chain) and laterally, so it can smoothly navigate curved conveyor paths.
We deliver this flexible performance through optimized pin diameters, tapered pins, or double-tapered bushings, supporting a wide range of curve radii for different application needs.
Key Advantages of Side Bow Chain
✅ Space-Saving Compact Design Enables tight, space-efficient conveyor layouts with seamless curves and bends, no extra space required for corner transfer stations.
✅ Smooth, Uninterrupted Operation Maintains consistent material flow around corners without transfer points, eliminating material jams and cutting down on unplanned downtime.
✅ Fully Customizable for Your Needs Can be tailored with special lubricants, protective coatings, bent attachments, or flat plastic conveyor plates to match your unique application requirements.
✅ 100% Compatible with Standard Sprockets Manufactured to strict ISO 606 international standards, our side bow chain works perfectly with your existing standard sprockets - no costly equipment upgrades needed.
