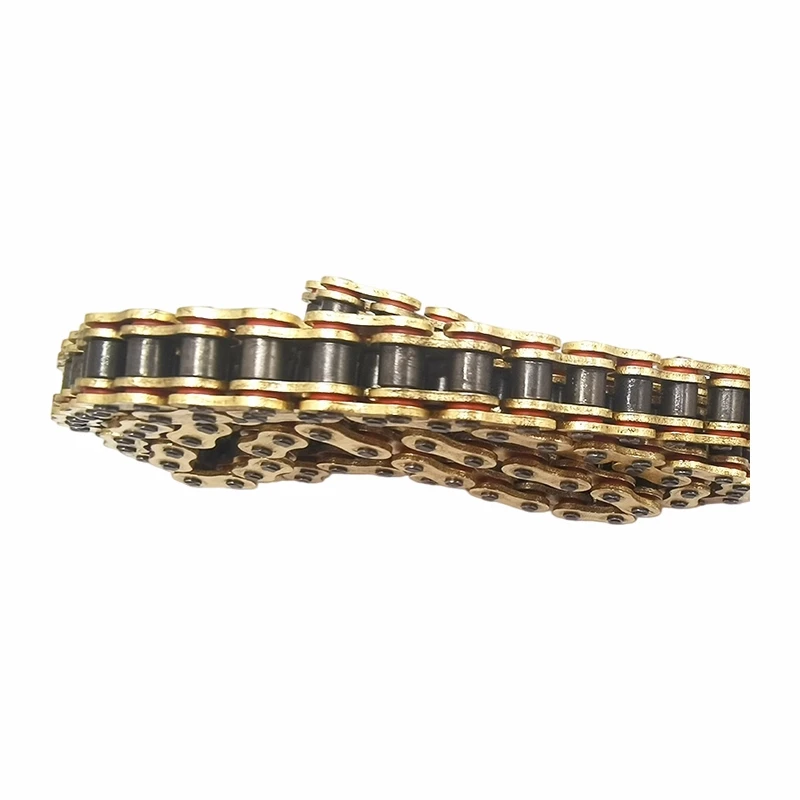

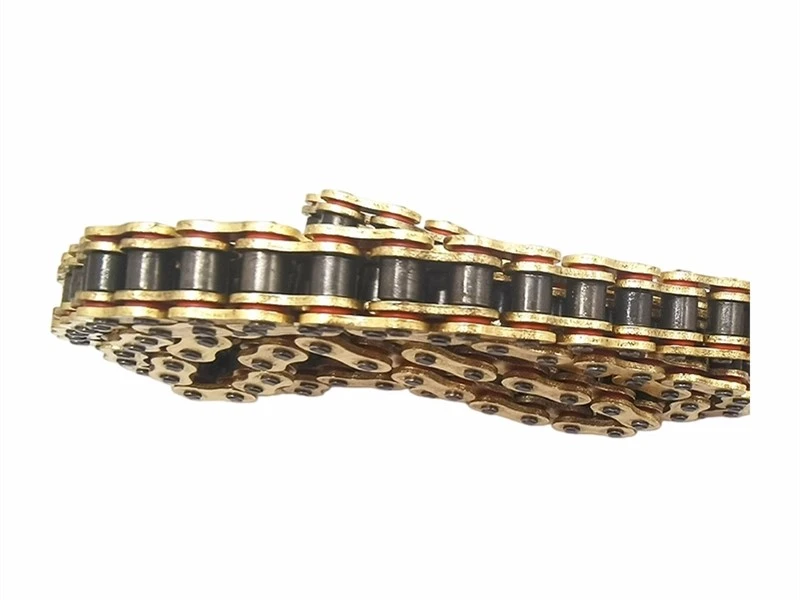

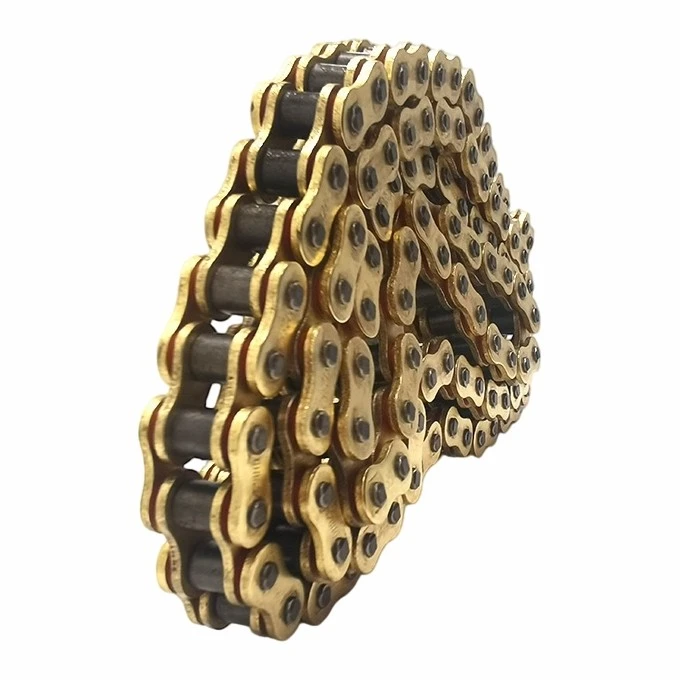

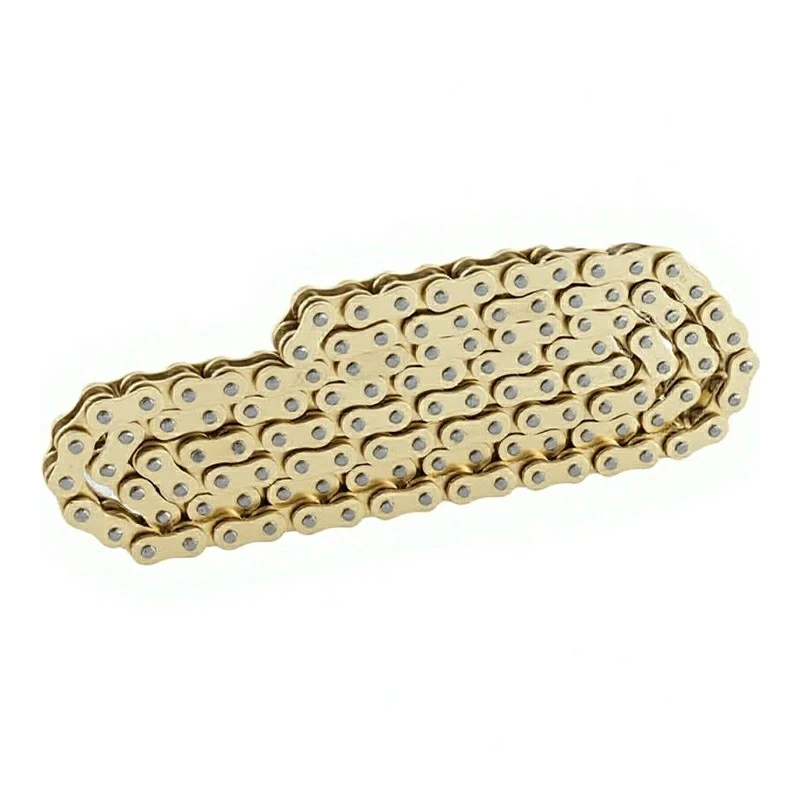

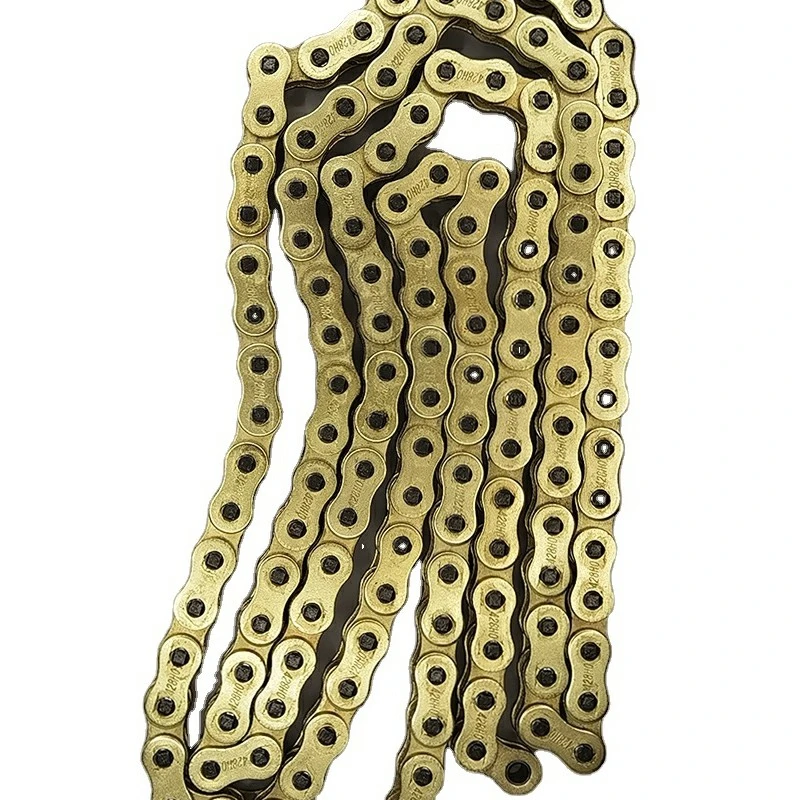

Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of 520 motorcycle chain in China, featured by quality products and good service. If you're going to wholesale advanced 520 motorcycle chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
520 Motorcycle Chain (ANSI Standard) - Basic Specifications
Standard Dimensions
|
Parameter |
Symbol |
Metric (mm) |
Imperial (inch) |
|
Chain Number |
- |
520 |
#520 |
|
Pitch |
P |
15.875 |
0.625 |
|
Roller Diameter |
d1 |
10.16 |
0.4 |
|
Inner Width |
b1 |
9.4 |
0.37 |
|
Pin Diameter |
d2 |
5.23 |
0.206 |
|
Max Pin Length |
L |
19.9 |
0.783 |
|
Pin Length (With Circlip) |
Lc |
21.4 |
0.843 |
|
Inner Plate Depth |
h2 |
15 |
0.591 |
|
Plate Thickness |
T |
2 |
0.079 |
Mechanical Properties
|
Item |
Standard 520 |
|
Ultimate Tensile Strength |
≥26.5 kN |
|
Average Tensile Strength |
≈28.0–31.0 kN |
|
Weight per Meter |
≈0.98 kg/m |
|
Max Working Load |
≈6.8–8.0 kN |
|
Recommended Displacement |
150–250 cc |
520H (Heavy Duty) Comparison
|
Parameter |
520 (Standard) |
520H (Heavy Duty) |
|
Plate Thickness |
2.0 mm |
2.4 mm |
|
Max Pin Length |
19.90 mm |
21.80 mm |
|
Ultimate Tensile Strength |
≥26.5 kN |
≥30.0 kN |
|
Suitable Displacement |
150–200 cc |
200–250 cc |
Standard Lengths (Links)
102L / 104L / 108L / 110L / 112L / 114L / 118L / 120L / 124L / 128L / 132L
How to Choose Between 520 and 520H Motorcycle Chain
Both 520 and 520H follow ANSI standards and share the same 15.875mm pitch. The core difference lies in structure and load capacity. The standard 520 features regular plate thickness and ultimate tensile strength of 26.5 kN. It is cost-effective, lightweight and perfectly suited for 150cc-200cc motorcycles for daily commuting and casual street riding.
520H is the heavy-duty upgraded version. With thicker side plates and reinforced pins, its tensile strength reaches 30.0 kN, delivering superior sturdiness and impact resistance. This model is the top pick for 200cc-250cc bikes, aggressive riding, off-road travel and high-torque working conditions. We also offer O-ring sealed variants and full sets of attachments for both models to meet diverse installation and application needs.
