Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of 16a-3-12t type c in China, featured by quality products and good service. If you're going to wholesale advanced 16a-3-12t type c made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Information
|
Item |
Specification |
|
Model |
16A-3-12T Type C |
|
Matching Chain |
16A ISO standard roller chain (triple-row) |
|
Pitch |
1.000" (25.4 mm) |
|
Structure |
Triple-row, 12 teeth, Type C (double hub) |
|
Standards |
ISO 606 / ANSI B29.1 |
Key Dimensions
|
Parameter |
Value (inch) |
|
Number of teeth |
12 |
|
Pitch diameter |
3.864" |
|
Outside diameter |
4.236" |
|
Caliper diameter |
3.196" |
|
Tooth width (per row) |
0.670" |
|
Total face width |
~2.170" |
|
Standard bore |
1.000" (customizable) |
|
Hub diameter |
3.250" |
|
Hub length |
2.000" |
Typical Applications
- Heavy-duty material handling conveyors
- Mining and construction machinery
- Agricultural equipment (harvesters, feeders)
- Industrial automation and processing lines
- High-torque power transmission systems

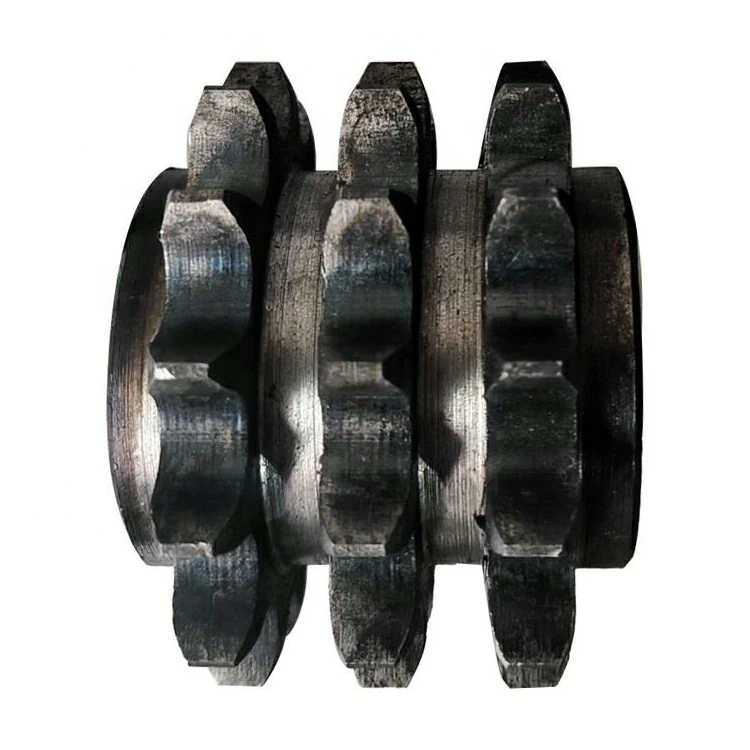

Versatility of 16A-3-12T Type C Triple Row Sprocket
This 16A-3-12T Type C triple row sprocket features excellent versatility and wide compatibility, fully manufactured to ISO standard dimensions to match 16A series triple row roller chains perfectly. Its Type C double hub structure adapts to diverse shaft mounting structures, fitting both standard and customized shaft assemblies without complex alterations.
Standardized tooth profile and pitch size guarantee seamless meshing with all regular 16A triple row chains from mainstream brands. It supports direct replacement of old or worn sprockets across different equipment brands, delivering great interchangeability. The universal mounting design works well for various installation spaces, whether for compact production lines or large heavy-duty machinery.
Built with robust carbon steel and heat-treated teeth, it performs stably under light, medium and heavy load conditions. It is applicable to conveyor systems, agricultural machinery, packaging equipment and material handling facilities. Thanks to universal specifications and reliable adaptability, this sprocket suits multiple industrial scenarios worldwide. It is a practical, all-purpose transmission part that simplifies part sourcing and equipment maintenance.
