Double Plus Chains

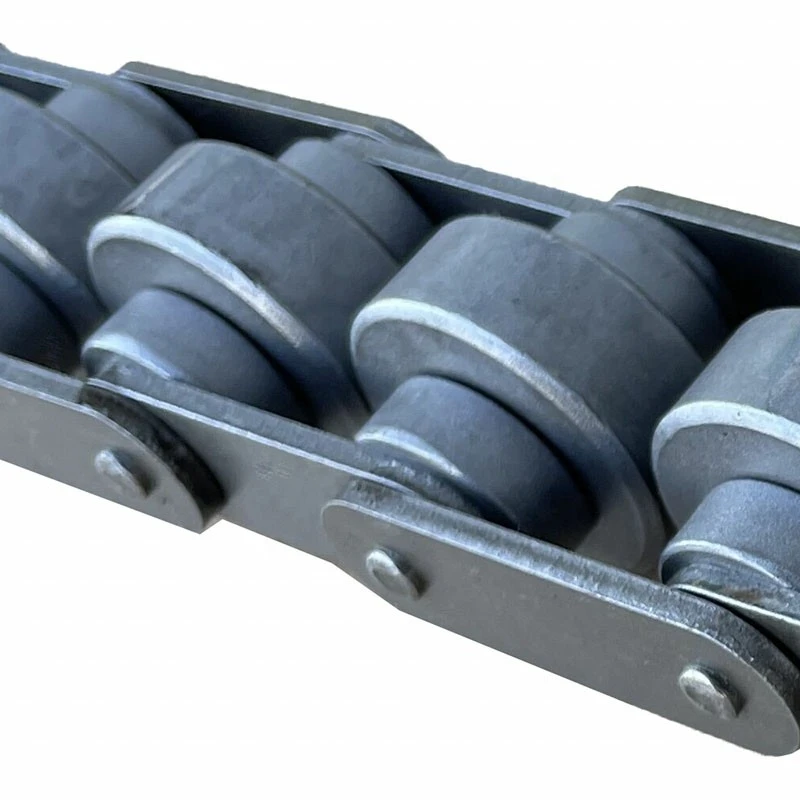

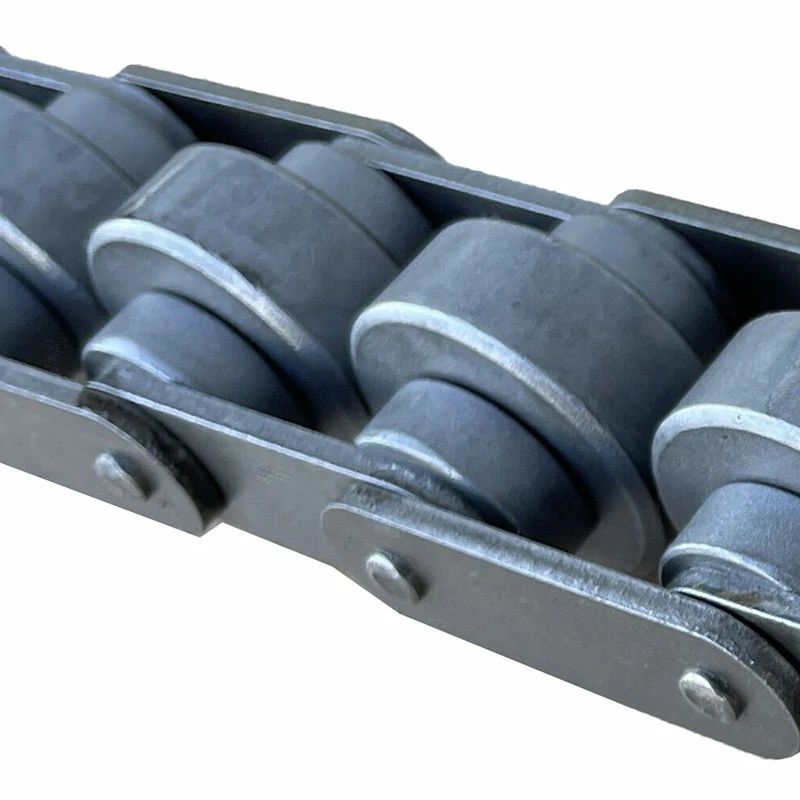

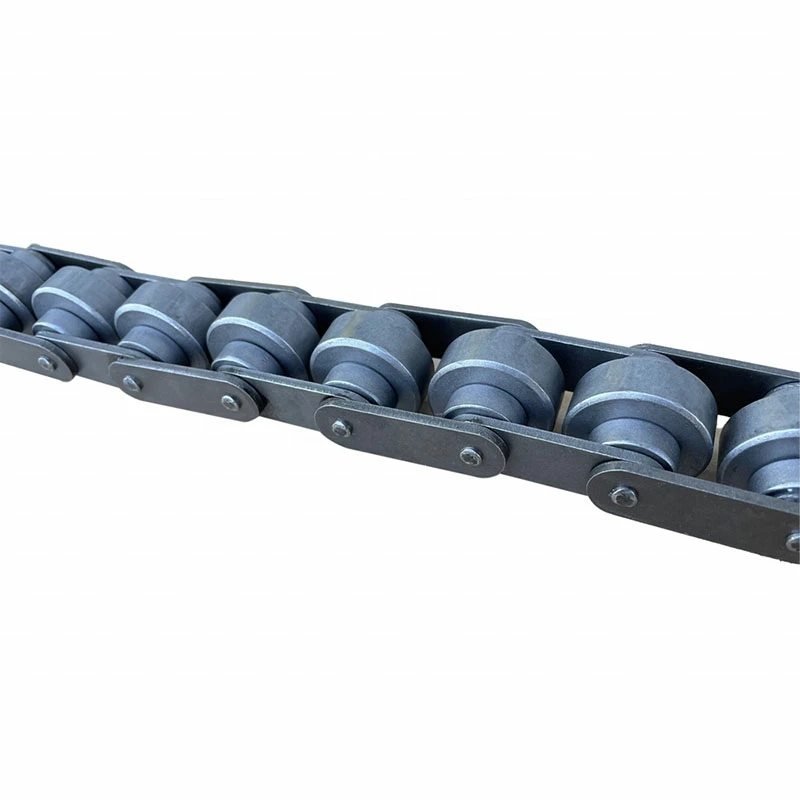

Double plus chains, also known as double-speed or free-flow chains, are a specialized conveyor chain designed for high-efficiency automated lines. Their core feature is a dual-roller structure-a large central roller paired with two small outer rollers. This unique design enables the pallet to move at 2.5 times the chain's speed, allowing slower chain operation with higher conveying efficiency.

Constructed with high-strength steel link plates and wear-resistant rollers (engineering plastic or steel), they ensure durability and low noise. A key advantage is free-flow accumulation: pallets can stop at workstations while the chain runs continuously, ideal for assembly lines. Widely used in electronics, automotive, and logistics, they deliver stable, quiet, and cost-effective conveying performance.

1. Speed difference design The workpiece carrier runs faster than the chain itself, realizing material accumulation and buffer function, suitable for assembly lines with station pause requirements.

2. Stable operation & low noise Optimized roller and hinge structure ensures smooth running, less vibration and low noise during long-time continuous work.

3. Wide load adaptability Complete specifications from light to heavy load; applicable for electronic products, home appliances, auto parts and other assembly scenarios.

4. Flexible layout Supports straight, turning and lifting conveying layouts, easy to match with automated production equipment.

5. Long service life Standard heat treatment for key components delivers good wear resistance and fatigue resistance.
