Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of c2050k2 double pitch conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced c2050k2 double pitch conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Parameters
|
Parameter |
Specification |
Unit |
|
Chain Number |
C2050K2 |
- |
|
Pitch (P) |
25.4 |
mm |
|
Roller Diameter (d₁) |
10.16 |
mm |
|
Inner Width (b₁) |
7.85 |
mm |
|
Pin Diameter (d₂) |
5.08 |
mm |
|
Pin Length (L, max) |
30.5 |
mm |
|
Inner Plate Depth (h₂, max) |
15.09 |
mm |
|
Plate Thickness (t) |
2.03 |
mm |
|
Attachment Type |
K2 (Double-side) |
- |
|
Attachment Hole Diameter (d₄) |
5.4 |
mm |
|
Ultimate Tensile Strength (Q, min) |
26.7 |
kN |
|
Weight per Meter (q) |
1.35 |
kg/m |
Key Notes
K2 Attachment:
Double-side bent plates with mounting holes, for symmetric installation of trays, fixtures, or side guides.
Material:
Standard carbon steel; stainless steel (304/316) optional.
Application:
Food processing, packaging lines, general material handling conveyors.

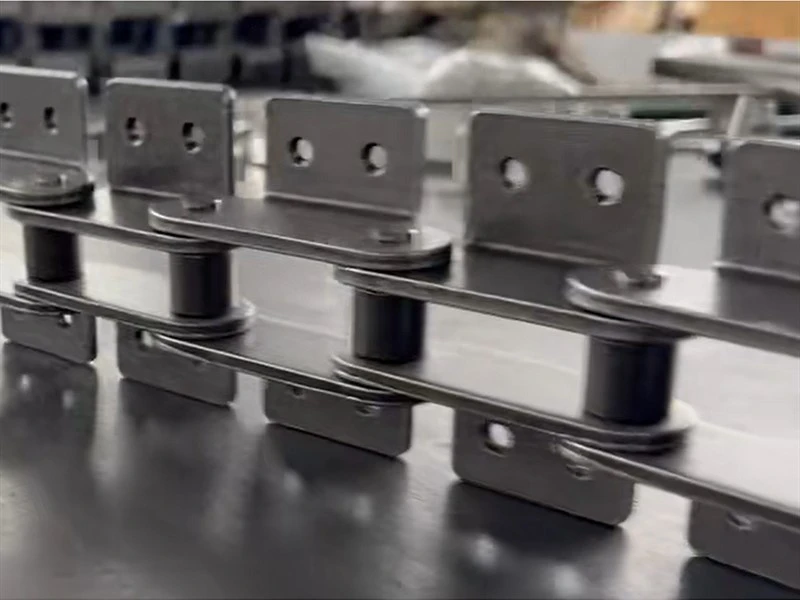

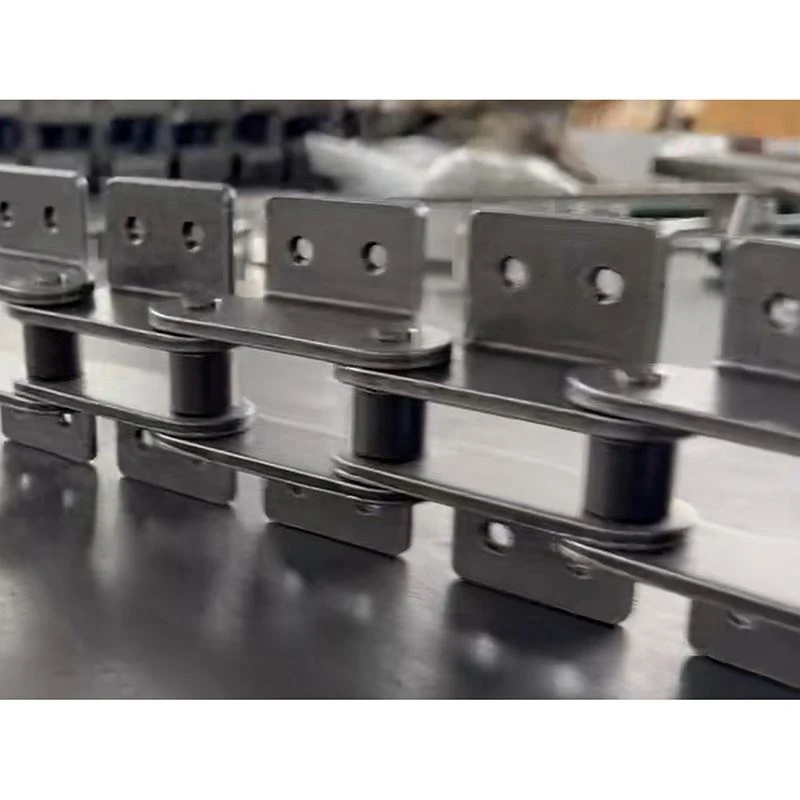

C2050K2 Double Pitch Conveyor Chain
Our C2050K2 double pitch conveyor chain is engineered for reliable material handling, featuring K2 double-side attachments for symmetric mounting of trays, fixtures and guides.
With a pitch of 25.4mm, it delivers high tensile strength and smooth operation. Standard carbon steel construction ensures durability, while optional 304/316 stainless steel versions meet corrosion-resistant requirements for food, pharmaceutical and chemical industries.
C2050K1 side bow chains work perfectly on curved lines across multiple industries. They convey packaged food, beverages and pharmaceutical products in processing workshops. In logistics warehouses, they handle parcels and cartons on winding sorting routes. The chains also serve automotive assembly lines for small component transport. Additionally, they apply to agricultural facilities to deliver grains and farm produce. With K1 attachments and flexible bending performance, they ensure stable conveying on complex turning tracks.
