Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of rollerless hoisting chain in China, featured by quality products and good service. If you're going to wholesale advanced rollerless hoisting chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

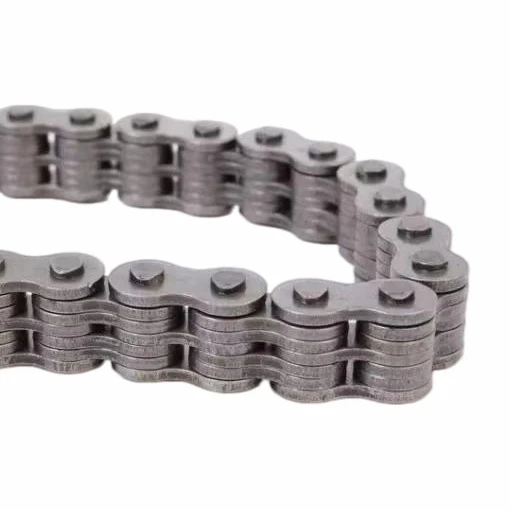

Rollerless Hoisting Chain 45−1 165−1 –Specification Table
|
Chain No. |
Pitch P (mm) |
Bush Dia. d1 (mm, max) |
Inner Width b1 (mm, min) |
Pin Dia. d2 (mm, max) |
Pin Length L (mm, max) |
Inner Plate Depth h2 (mm, max) |
Plate Thickness T (mm, max) |
Tensile Strength Q (kN/lbf, min) |
Avg. Tensile Strength Q0 (kN) |
|
45-1 |
12.7 |
5.63 |
7.85 |
3.96 |
16.6 |
12 |
1.5 |
14.10 / 3205 |
17.5 |
|
55-1 |
15.875 |
7.03 |
9.4 |
5.08 |
20.7 |
15.09 |
2.03 |
22.20 / 5045 |
29.4 |
|
65-1 |
19.05 |
8.33 |
12.5 |
5.94 |
25.2 |
18 |
2.42 |
31.80 / 7227 |
41.2 |
|
85-1 |
25.4 |
11.1 |
15.75 |
7.92 |
32.2 |
24 |
3.2 |
48.90 / 11000 |
55.6 |
|
105-1 |
31.75 |
12.7 |
18.9 |
9.53 |
39.3 |
30 |
4 |
75.60 / 17000 |
84.5 |
|
125-1 |
38.1 |
15.6 |
25.22 |
11.1 |
45.4 |
35.7 |
4.8 |
112.5 / 25300 |
124.5 |
|
145-1 |
44.45 |
18 |
25.22 |
12.7 |
51.5 |
41 |
5.6 |
155.0 / 34800 |
173.5 |
|
165-1 |
50.8 |
20 |
31.55 |
14.27 |
57.5 |
47.8 |
6.4 |
205.0 / 46100 |
231.3 |
Standard: ANSI B29.1 / China Standard, Single Row, Rollerless (Bushing Chain)
Key Notes
Construction: Rollerless, solid bushing, single row.
Material: High‑strength alloy steel, heat‑treated.
Application: Forklift masts, hoists, cranes, elevators, mining machinery
Rollerless hoisting chains adopt a robust roller-free structure with exceptional load-bearing capacity. Crafted from premium heat-treated alloy steel, they gain high hardness, great wear resistance and reliable mechanical strength for long-term use.
These chains are widely used in various industrial sectors. They work perfectly for lifting applications on forklift masts, elevators and cranes, and also fit construction machinery, automotive production lines and warehouse handling equipment.
Boasting steady running performance, they require minimal routine maintenance and feature an extended service life. They are a practical and dependable option for heavy-duty tasks and harsh working environments.
