Hollow Pin Leaf Chain

Hollow Pin Leaf Chain

LF36 hollow pin leaf chain is a high-strength lifting chain with a unique hollow pin design. Made of premium alloy steel, all components are precision machined and heat-treated to deliver excellent tensile strength, wear resistance and impact resistance.
Send Inquiry
Description

Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of hollow pin leaf chain in China, featured by quality products and good service. If you're going to wholesale advanced hollow pin leaf chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.



Technical Parameters



Standard: ISO 4347 / DIN 8152 (Hollow Pin Leaf Chain

1. LF36 (2×2 Lacing)

Parameter

Symbol

Value

Unit

Pitch

P

36.513

mm

Plate Lacing

-

2×2

inner×outer

Plate Depth (max)

h₂

22.3

mm

Plate Thickness (max)

T

2.03

mm

Pin Diameter (max)

d₂

10.2

mm

Hollow Pin Bore (max)

d₃

14.4

mm

Pin Length (max)

L

12

mm

Ultimate Tensile Strength

Q

20.0 / 4496

kN / lbf

Average Tensile Strength

Q₀

25

kN

Weight per Meter

q

0.85

kg/m



2. LF36 Series Common Models (Hollow Pin)

Chain No.

Pitch P (mm)

Lacing

h₂ (mm)

T (mm)

d₂ (mm)

d₃ (mm)

L (mm)

Q (kN/lbf)

Q₀ (kN)

q (kg/m)

LF36

36.513

2×2

22.3

2.03

10.2

14.4

12

20.0/4496

25

0.85

LF36F2

36.513

2×2

24

2.5

9.5

14.9

15

30.0/6744

37.5

1.19

LF36F3

36.513

2×2

24

2.5

10

14.9

15

30.0/6744

37.5

1.16



product properties



Material

Alloy/Carbon Steel

USES

Construction machinery industry

Color

solid colored

Transport Packaging

Export Package

Plate Lacing

2X2 4X4 4X6 6X6 8X8

Chain Pitch

15.7mm 15.875mm 19.05mm 25.4mm 31.75mm 38.1mm 44.45mm m50.8mm



Features

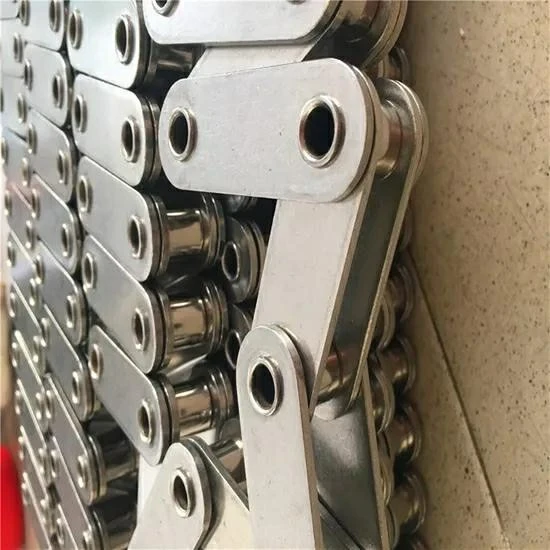

product-550-550

Precision Engineered Hollow Pin Leaf Chains for Seamless Cross-Rod Integration

Our Hollow Pin Leaf Chains are specifically made for overhead material handling equipment, vertical reciprocating conveyors (VRCs), and automated vertical lifting systems. These chains enable the smooth insertion of Cross Rods (cross bars/stay pins) through the chain strands by using high-precision hollow pins, resulting in a flawlessly synchronized and sturdy lifting frame without the need for extra weight.

Pin Inner Diameter (d1) & Outer Diameter (d2): Precision bored to ensure tight clearance fits (up to H7/g6 tolerance class) with your custom cross rods.

Pitch Uniformity: Strictly controlled pitch tolerance minimizes chain elongation and guarantees smooth sprocket or sheave engagement during continuous vertical duty.

Material & Heat Treatment Matrix



Alloy Carbon Steel (20CrMnTi / 40Mn) - Maximum Strength:

Process: High-frequency induction hardening on pins + carburizing process.

Best for: Heavy-duty vertical lifts, high-load warehouse elevators, and demanding industrial hoists requiring exceptional wear resistance (HRC 58–62).

304 / 316 Stainless Steel (SUS304 / SUS316) - Corrosion Resistance:

Process: Work-hardened stainless steel with optional passivation treatment.

Best for: Food processing elevators, pharmaceutical vertical conveyors, and harsh chemical/washdown environments.





Applications



Automated Vertical Elevators (VRCs): Cross rods penetrate directly through the hollow pins to synchronize multi-strand vertical lifts in high-density automated warehouses.

Drying Ovens & Overhead Conveyors: Enables rapid mounting and dismounting of carrier racks, product hooks, and tubular cross-bars directly inside the chain axis.

Specialized Packaging & Sorting Lines: Ideal for attachment-heavy conveyances where clean, lightweight through-bar mounting is required.
