M2-20T Bore 8mm Miter Gear - Technical Parameters
|
Parameter |
Specification |
|
Gear Type |
Straight Miter Gear (1:1 Ratio, 90° Shaft Angle) |
|
Module (m) |
2 mm |
|
Number of Teeth (Z) |
20 Teeth |
|
Pressure Angle |
20° (Standard) |
|
Pitch Diameter (PD) |
40 mm (Calculation: m×Z=2×20) |
|
Outside Diameter (OD) |
44 mm (Calculation: m×(Z+2)=2×22) |
|
Bore Diameter |
Ø8 mm (Finished bore with set screw holes) |
|
Hub Style |
Single hub with 2 set screw holes (standard) |
|
Material |
45# Carbon Steel (black oxide finish) |
|
Surface Treatment |
Black oxide (anti-rust, wear-resistant) |
|
Precision Grade |
ISO 8 (general industrial grade) |
|
Shaft Angle |
90° (standard miter gear application) |
|
Transmission Ratio |
1:1 (equal speed) |
|
Typical Tooth Width |
8–10 mm (standard for M2 miter gears) |
Product Description

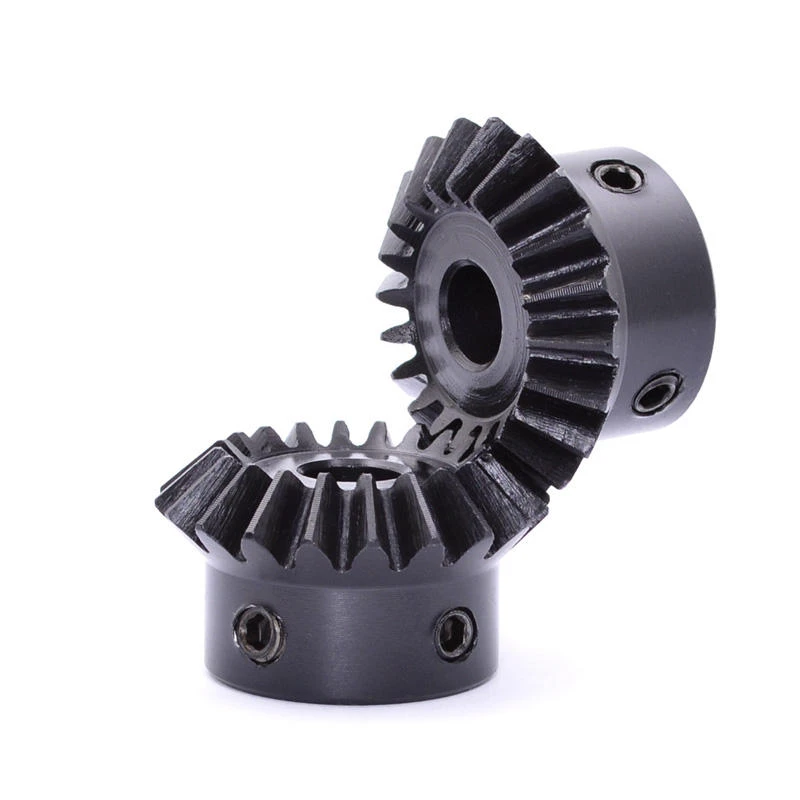

This M2-20T straight miter gear is a high-quality, 1:1 equal-speed bevel gear designed for reliable power transmission at a 90° shaft angle. Manufactured from premium 45# carbon steel with a durable black oxide finish, it offers excellent wear resistance, corrosion protection, and structural rigidity for long-term industrial use.
The gear features a standard 20° pressure angle and precision-cut teeth for smooth, low-vibration meshing. Its finished Ø8mm bore, paired with two set screw holes, ensures secure, slip-free mounting on standard drive shafts without the need for additional machining. With a pitch diameter of 40mm and outside diameter of 44mm, this compact yet robust gear delivers consistent performance in light-to-medium duty applications.
Widely used in automation equipment, packaging machinery, small industrial reducers, and general mechanical transmission systems, this miter gear is ideal for scenarios requiring compact 90° power turning with equal speed transfer. It is sold as a matched pair to ensure perfect meshing and alignment, making it a reliable choice for your light-duty power transmission needs.
