Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of crossed helical gears in China, featured by quality products and good service. If you're going to wholesale advanced crossed helical gears made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Technical Parameters
|
Parameter |
Specification |
|
Gear Type |
Crossed Helical Gear / Skew Helical Gear |
|
Module (m) |
3 mm |
|
Number of Teeth (Z) |
15 Teeth |
|
Pressure Angle (α) |
20° (Standard) |
|
Helix Angle (β) |
Customizable (Common: 15°, 20°, 30°, 45°) |
|
Hand of Helix |
Left-Hand (LH) or Right-Hand (RH) |
|
Shaft Angle |
Typically 90° (custom angles available) |
|
Pitch Diameter (PD) |
45 mm (Calculation: m × Z = 3 × 15) |
|
Outside Diameter (OD) |
51 mm (Calculation: m × (Z + 2) = 3 × 17) |
|
Root Diameter (RD) |
37.5 mm (Calculation: m × (Z − 2.5) = 3 × 12.5) |
|
Circular Pitch (p) |
9.42 mm (Calculation: π × m ≈ 3.14 × 3) |
|
Hub Style |
Type B (Single-Side Hub, standard) |
|
Bore Type |
Finished bore with keyway + set screw holes |
|
Common Material |
45# Carbon Steel / Stainless Steel (304/316) / 40Cr Alloy Steel |
|
Heat & Surface Treatment |
Induction hardened teeth (45–55 HRC) / Black oxide / Polished |
|
Precision Grade |
ISO 7–8 |
|
Application |
Light-duty crossed-axis power transmission, automation equipment, packaging machinery, small drives |

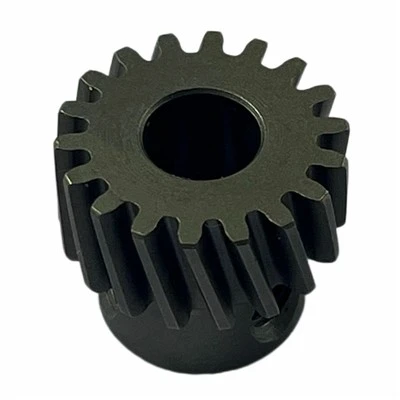

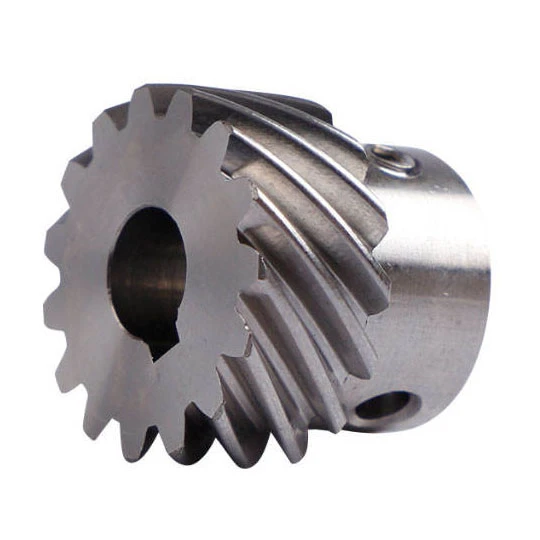

This M3-15T crossed helical gear, also known as skew gear, is specially developed for power transmission between non-parallel and non-intersecting shafts, with 90° shaft layout as the most common application. Adopting a standard 20° pressure angle, it supports customizable helix angle and hand of helix. The precise tooth structure enables smooth meshing and quiet operation, ideal for various light-duty working scenarios.
Featured with Type B single hub, it comes with finished bore, keyway and set screw holes, enabling firm positioning and effortless installation. Reliable and compact, this gear is extensively applied in automated facilities, packaging machines and various small industrial transmission systems.
