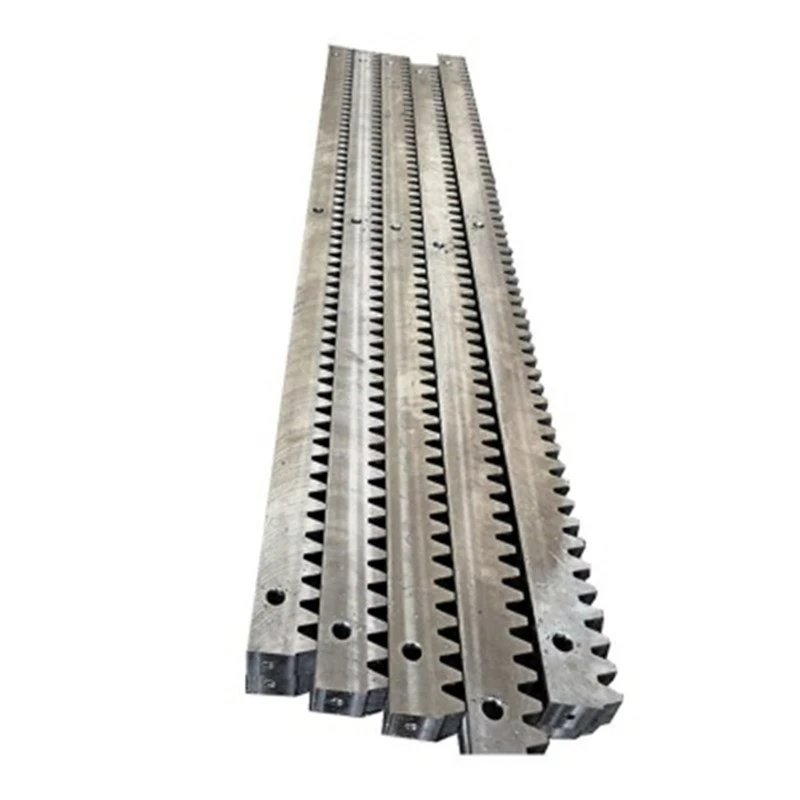

HR-40×60×1508mm Elevator Rack
|
Model |
HR-40×60×1508, Module M8 Overall Dimensions |
|
Width |
40 mm |
|
Height |
60 mm |
|
Length |
1508 mm (Standard section length) |
|
Weight |
Approx. 23.8 kg per piece |
|
Material |
C60 carbon steel (Optional: C55, 45# steel, 40Cr) |
|
Module |
M8 (Standard module for construction elevators) |
|
Pressure Angle |
20° (Standard) |
|
Circular Pitch |
25.13 mm |
|
Total Tooth Height |
18 mm |
Short Product Description
Surface Treatment (Optional)Black oxide finish, galvanization, induction hardening Tooth Hardness after hardening: HRC 40–55Accuracy: Cumulative tolerance approx. 0.1 mm per meter; 0.02 mm per meter after precision grinding Compatible Models: SC200 / SC100 series construction elevators (Matching standard mast sections)Features: High strength, excellent wear resistance, suitable for heavy load and frequent lifting operations on construction sites.
Service Life of Construction Elevator Rack Under standard working conditions and proper maintenance, the service life of HR-40×60×1508 (M8) elevator rack is 3 to 5 years.
Ordinary carbon steel without hardening: 2,000–5,000 working hours (2–3 years)C60 steel with tooth surface hardening: 6,000–8,000 working hours (3–5 years)High-grade alloy steel with precision grinding & deep hardening: 8,000–12,000 working hours (5–8 years)Main Influencing Factors
Material & Heat Treatment Tooth surface hardness HRC 40–55 greatly improves wear resistance and service life. Non-hardened racks wear much faster.
Load & Operation Frequency Full-load and long-hour daily operation will shorten the service life. Light load and intermittent use extend its lifespan.
Lubrication & Working Environment Regular lubrication and effective dust & mud protection can prolong service life by 30%–50%. Severe dust, mud and dry friction will accelerate wear.
Installation Accuracy Poor alignment and excessive meshing gap cause strong impact and rapid abrasion.
Scrap Standard Replace immediately if tooth thickness wear exceeds 30% of the original size.Stop using once cracks, broken teeth or severe corrosion appear.
