Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of straight rack - m4 40×40×2000mm in China, featured by quality products and good service. If you're going to wholesale advanced straight rack - m4 40×40×2000mm made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

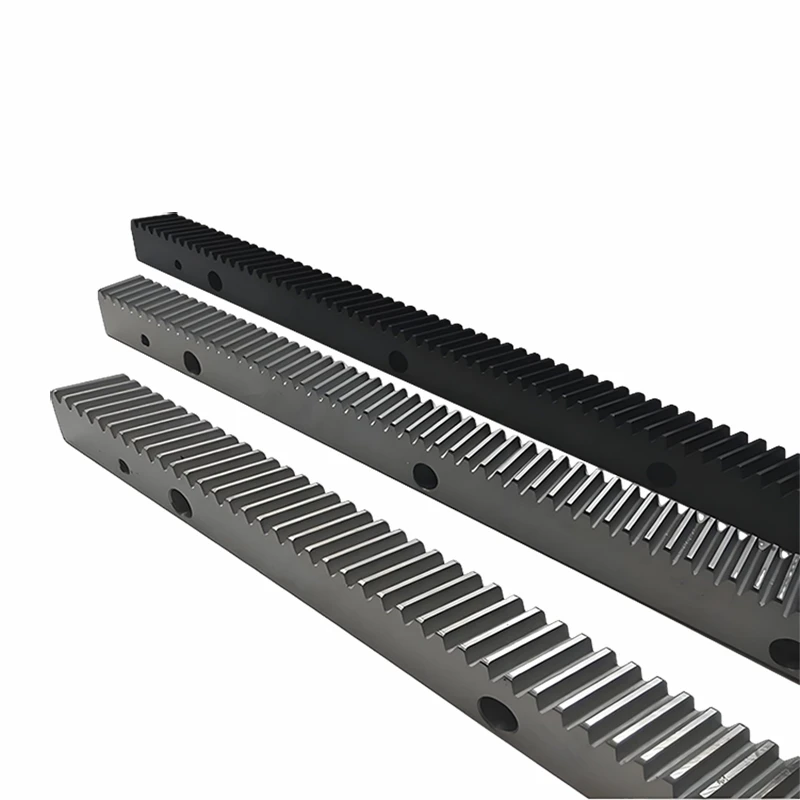

Straight Rack - M4 40×40×2000mm
|
Parameter |
Specification |
|
Gear Type |
Straight Rack (Spur Rack) |
|
Module |
M4 (Metric) |
|
Pitch (Circular Pitch) |
12.57 mm (π×4) |
|
Standard Tooth Profile |
20° Pressure Angle, Full Depth |
|
Cross Section |
40 mm × 40 mm |
|
Total Length |
2000 mm |
|
Material (Common) |
45# Carbon Steel / 40Cr Alloy Steel |
|
Surface Treatment |
Black Oxide / Induction Hardening (Optional) |
|
Tooth Hardness (If Hardened) |
HRC 45–55 |
|
Precision Grade (Typical) |
DIN 8 / ISO 8 (Customizable) |
|
Mounting |
With pre-drilled mounting holes (standard) |
|
Application |
CNC machines, large gantry equipment, heavy-duty linear motion systems |
Straight Rack - M4 40×40×2000mm
This M4 straight rack with dimension 40×40×2000mm is a standard linear transmission component built for reliable rack and pinion drive systems.
For selection, it features standard M4 module and accurate tooth profile, perfectly matching corresponding spur gears with the same module and pressure angle. Its solid 40×40 cross section ensures high rigidity and load capacity. The 2000mm length meets long-stroke movement demands, and users can also cut it into customized sizes as needed.
In application, it delivers stable, low-noise linear motion. It is widely used in automated production lines, lifting devices, material handling equipment and general industrial machinery. Suited for medium-load operating conditions, it works steadily in normal workshop environments. With standard specifications and easy installation, it is a cost-effective choice for various linear transmission projects.
