Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of c2080-3-18t type a in China, featured by quality products and good service. If you're going to wholesale advanced c2080-3-18t type a made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Parameters
|
Parameter |
Specification / Description |
|
Chain Compatibility |
C2080-3 Double Pitch Conveyor Chain (ANSI Standard) |
|
Pitch (P) |
50.8 mm (2.0 inch) |
|
Number of Strands |
3 (Triple Strand) |
|
Number of Teeth (Z) |
18 |
|
Type |
Type A (Plain Plate / No Hub) |
|
Pitch Diameter (PD) |
324.08 mm (12.76 inch) |
|
Outside Diameter (OD) |
331.0 mm (13.03 inch) (Approximate) |
|
Root Diameter (RD) |
307.3 mm (12.10 inch) (Approximate) |
|
Material |
45# Carbon Steel (Standard) |
|
Heat Treatment |
Induction Hardened Teeth (45-55 HRC) |
|
Bore Type |
Pilot Bore (Standard, custom finished bore available) |
|
Keyway & Set Screws |
Available upon request |
|
Application |
Conveyor systems, material handling, industrial transmission |
Product Description

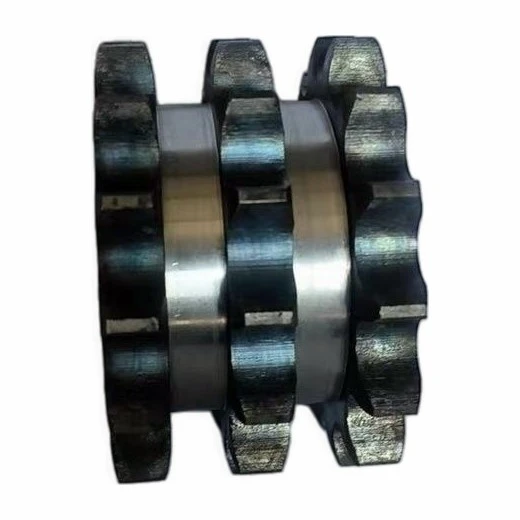

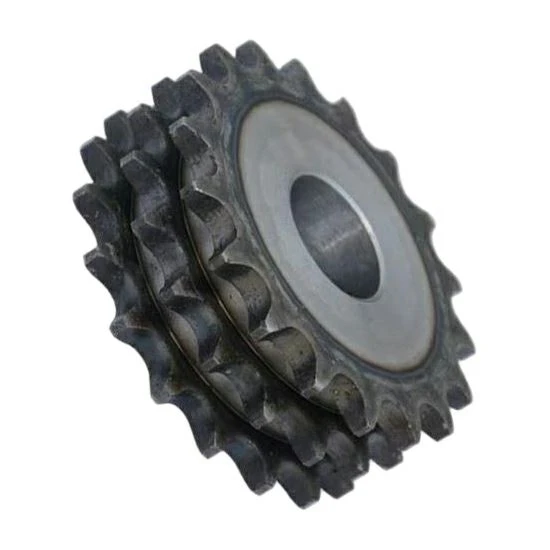

The C2080-3-18T Type A Sprocket is engineered for reliable, heavy-duty power transmission and material handling applications, built to match ANSI-standard double pitch conveyor chains.
Chain Compatibility Designed to fit C2080-3 triple-strand double pitch conveyor chain (pitch: 50.8 mm / 2.0"), this sprocket ensures smooth meshing and consistent power transfer. It also works with equivalent ISO/DIN-compliant triple-strand chains with the same pitch, providing versatile compatibility for standard conveyor systems.
Key Features
18-tooth configuration balances torque distribution and chain wrap angle, reducing wear and extending service life.
Type A (plain plate) design allows for custom bore machining to fit various shaft sizes, making it adaptable to diverse installation requirements.
Constructed from high-quality carbon steel with induction-hardened teeth (45–55 HRC), offering excellent wear resistance and impact strength under continuous operation.
Applications This triple-strand sprocket is widely used in industries requiring robust material handling:
- Food & beverage processing lines
- Packaging and bottling equipment
- Logistics and warehouse conveyor systems
- Agricultural processing machinery
- General industrial assembly lines
