Description
Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of enclosed track conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced enclosed track conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Structure
- Chain Body X458 and X698 are internationally standard forged overhead conveyor chains. Precision forged alloy steel construction delivers higher toughness and impact resistance compared with stamped chains. X458 for light-duty transport, X698 for heavy-load applications. Both match standard enclosed I-shaped overhead tracks.

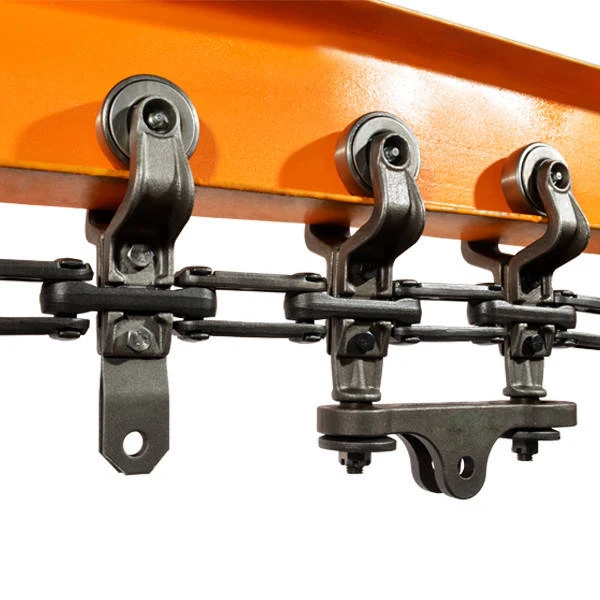

- Trolley Carrier Assembly Each unit consists of track running wheels, forged hangers, fasteners and mounting lugs. The rollers bear vertical load and travel along the enclosed track. The chain only transmits traction force instead of supporting workpiece weight, effectively reducing chain tension wear. Two hanger types available: single-lug for light loads, double-support hanger for heavy-duty trolleys.
- Hinge Assembly Hardened solid pins and wear-resistant bushings with grease fitting points for continuous cyclic operation. The conveyor system supports horizontal turning, ascending and descending for closed-loop three-dimensional production lines.
Key Features
- One-piece forged alloy steel construction, excellent impact resistance against frequent start-stop operation.
- Optimized load-sharing structure: running trolleys carry vertical weight; chain only undertakes traction, greatly extending service life.
- Enclosed overhead track protects moving parts from dust, spray liquid and moisture, ideal for coating & pretreatment workshops.
- Modular hanger components. Worn hangers can be replaced separately without cutting the whole chain to save maintenance cost.
- Two specifications cover full load range: X458 light-duty, X698 heavy-duty.
Application
Automatic electrocoating & painting production lines; suspension transport for auto parts and hardware workpieces; overhead closed-track trolley circulation systems; electroplating, pickling pretreatment and drying production lines.
Advantages
- Globally recognized Matech standard X458/X698 overhead conveyor chain, high interchangeability of spare parts.
- Load-bearing trolley design minimizes chain abrasion.
- Forged chain links withstand impact loads in continuous production.
- Optional single/double hangers to match light & heavy transport trolleys.
