Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of cf70 ice cream chain in China, featured by quality products and good service. If you're going to wholesale advanced cf70 ice cream chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

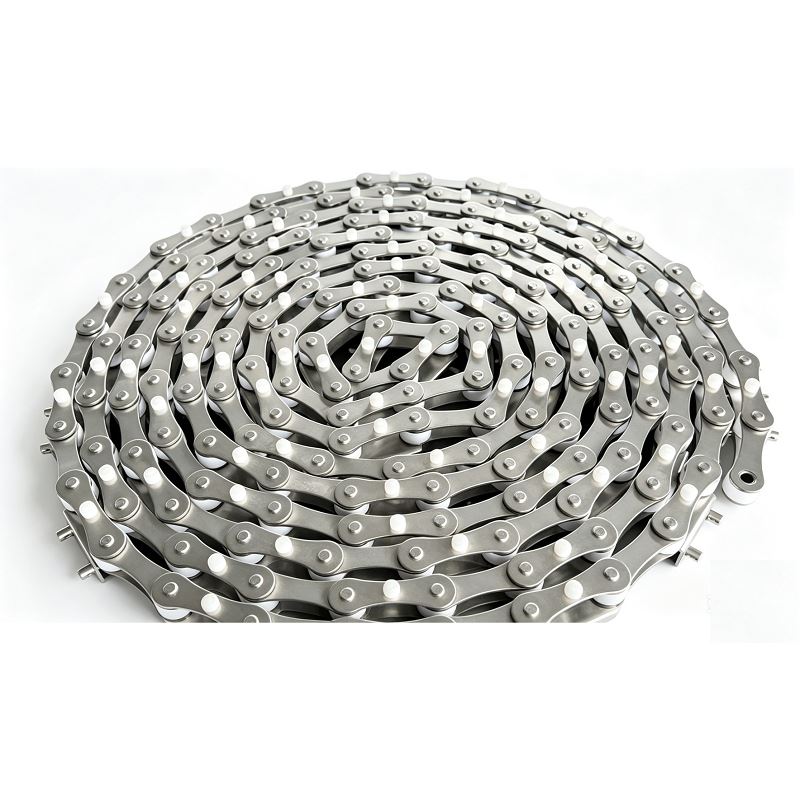

CF70 Ice Cream Conveyor Chain (Deep Freezing Tunnel Chain) Specification
This is a specialized non-standard conveyor chain designed for ice cream and popsicle production lines, optimized for low-temperature environments.
|
Parameter |
Symbol |
Typical Value |
|
|
Chain Model |
- |
CF70 / CD70 (Freezing Tunnel Chain) |
|
|
Pitch |
P |
70 mm (customizable) |
|
|
Material |
- |
Stainless Steel 304/316 (food-grade) |
|
|
Roller Type |
- |
With low-friction plastic/stainless steel rollers |
|
|
Ultimate Tensile Strength |
UTS |
≥ 40 kN |
|
|
Operating Temperature |
- |
-40°C to +80°C |
|
|
Attachments |
- |
Custom-designed for ice cream mold mounting |
|
|
Application |
- |
Ice cream quick-freezing tunnels, popsicle production lines |
Note: CF70 is often used as a generic model name for deep-freezing tunnel chains with 70mm pitch. Exact dimensions and attachments vary by equipment manufacturer, so specifications should always be confirmed with your original equipment drawings.
How to Choose the Right Ice Cream Conveyor Chain for Your Production Line
Choosing the right ice cream conveyor chain is critical for maintaining efficiency, hygiene, and product quality in your freezing tunnel or popsicle production line.
Start with core specifications: confirm the chain pitch (CF70 is a common standard for ice cream lines), which must match your sprocket and mold spacing to avoid jamming or misalignment. Prioritize food-grade materials like 304/316 stainless steel, which resist corrosion from frequent washdowns and low-temperature environments (-40°C), meeting food safety standards.
Check the custom attachments: these must align perfectly with your ice cream molds, ensuring secure mounting and smooth operation. For low-friction performance, select chains with food-safe, low-temperature-resistant rollers to reduce wear and noise.
Opt for chains designed for continuous use in freezing tunnels, with robust construction and reliable tensile strength to handle high loads.
By matching specifications, material, attachments, and low-temperature performance, you'll ensure long-lasting, hygienic, and efficient production.
