Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of flat filling machine chain in China, featured by quality products and good service. If you're going to wholesale advanced flat filling machine chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

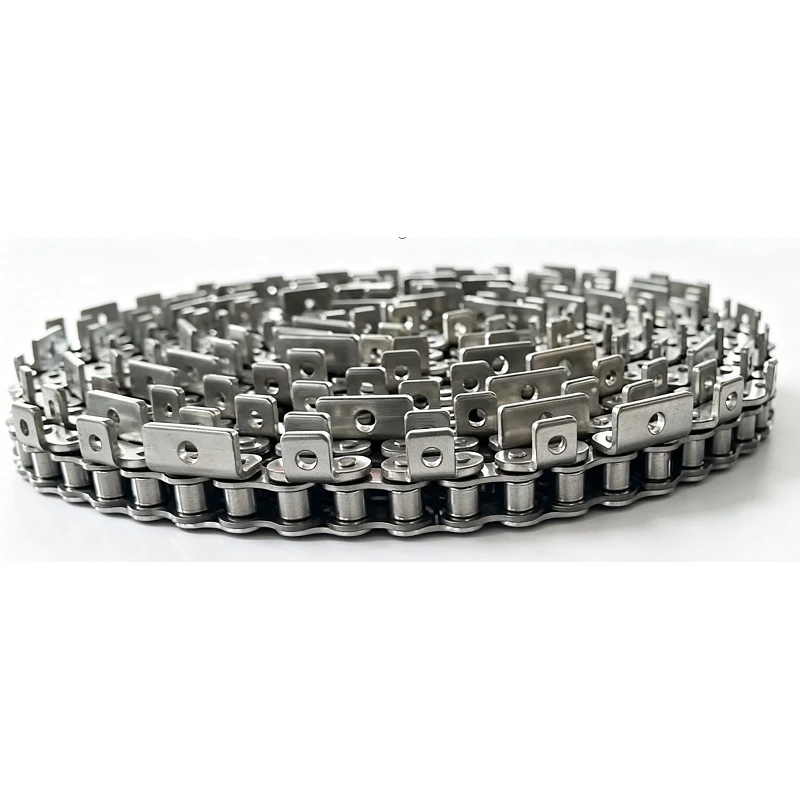

Advantages Flat filling machine chain
It is typically made of 304/316 stainless steel, which withstands frequent water washing and acid/alkaline cleaning on filling lines, resists rust, and meets hygiene requirements for food, daily chemical, and pharmaceutical industries.
Core Functions of Bent Attachments
The single bent plate (K-type attachment) in the image has mounting holes, allowing you to directly bolt on:
Bottle holders and tooling fixtures for precise positioning of bottles and cans
Side guards and limit strips to prevent bottles from tipping or shifting These are exactly the functions required for conveying and positioning stations on flat filling machines.
High Versatility of Models
The most common base models for flat filling machines are 08B, 10A, and 12A series stainless steel bent-plate chains, which perfectly match the structure shown. As long as the pitch and width match the equipment sprockets, they can be directly replaced.
Tips for Chain Selection
First, confirm the chain pitch (e.g., 12.7mm/15.875mm/19.05mm) and chain width to ensure they match the equipment sprockets.
For high-speed or heavy-duty filling lines, double-strand models or chains with thicker plates are recommended to improve stability.
If stricter anti-tipping performance is required, custom versions with double-sided bent attachments (K2) or raised guard attachments are also available.
