Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of washing machine chain in China, featured by quality products and good service. If you're going to wholesale advanced washing machine chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Designed primarily for food cleaning equipment, including fruit and vegetable washers, crate cleaning machines, and frozen meat thawing & cleaning lines, this chain offers outstanding water and corrosion resistance, thanks to its food-grade stainless steel build. Chains with extended rods or attachments are widely used in such lines to securely support and transport products during the cleaning process.
Stainless Steel Conveyor Chain with Extended Rods – Technical Parameters
|
Item |
Specification |
Remark |
|
Product Name |
Food Grade Stainless Steel Conveyor Chain with Extended Rods |
Custom food processing chain |
|
Chain Model |
Standard A / B series roller chain |
08B, 10A, 12A, 16A etc. |
|
Pitch |
Standard industrial pitch |
12.7mm / 15.875mm / 19.05mm / 25.4mm |
|
Material |
Stainless Steel 304 / 316 |
Food grade, corrosion resistant |
|
Pin Type |
Extended solid pins |
For mounting support rods |
|
Structure Feature |
Chain with custom support rods / attachments |
For holding and conveying materials |
|
Rod Diameter |
Customizable |
φ6mm / φ8mm / φ10mm optional |
|
Rod Length |
Fully customizable |
According to equipment requirements |
|
Surface Treatment |
Mirror polished / Electropolished |
Smooth, no dead corner, easy to clean |
|
Working Temperature |
-40℃ ~ +120℃ |
Suitable for freezing & washing environment |
|
Performance |
Waterproof, rust-proof, wear-resistant |
Long service life in humid conditions |
|
Application |
Food washing & processing equipment |
Fruit & vegetable washer, crate washer, frozen meat line, ice cream production line |
|
Custom Service |
Full customization available |
Rod spacing, length, shape, chain size |

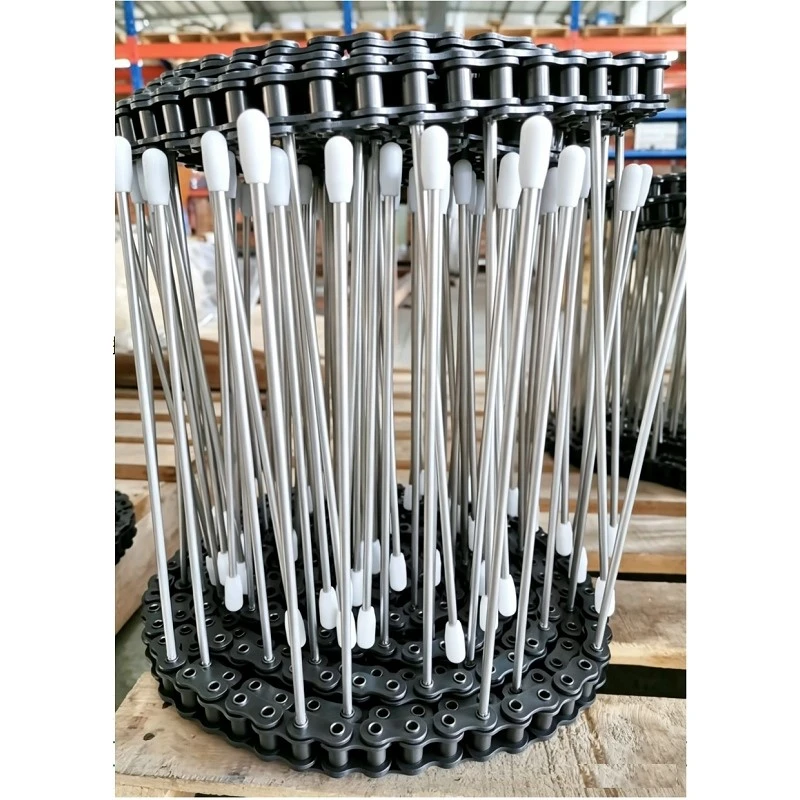

Function of Extended Pins
Our food-grade stainless steel conveyor chains with extended pins are widely used in food washing and ice cream production lines. The extended pins serve as the key mounting base for support rods and various attachments. They enable stable installation of material holders, trays and mould fixtures, which firmly carry products during conveying, washing and freezing processes. With optimized structural design, the extended pins feature high rigidity and load capacity, avoiding loosening or deformation under continuous operation. They also simplify assembly and maintenance. Thanks to this design, the whole conveyor system runs smoothly and reliably, greatly improving production efficiency and extending the overall service life of the equipment.
