Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of pitch 12.7mm u-shaped rubber cover chain in China, featured by quality products and good service. If you're going to wholesale advanced pitch 12.7mm u-shaped rubber cover chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Products Description

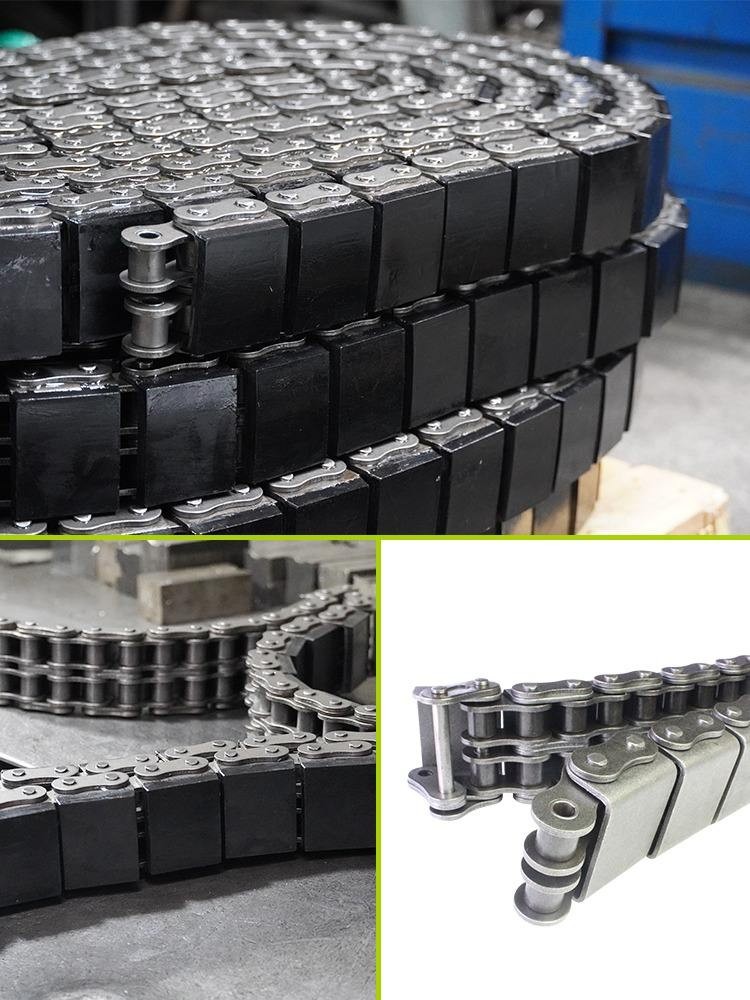

The 12.7mm (1/2") pitch U-shaped rubber top conveyor chain (standard 08B series base) is designed especially for the non-slip, anti-scratch, and mar-free transportation of delicate products. This rubber profile conveyor chain guaranties maximum friction while shielding high-value surfaces-such as architectural glass, polished timber, delicate electronics, and finished sheet metals-from scratches, scuffs, and impacts during transit. It has high-durability elastomeric profile pads firmly mounted in a U-shaped steel cradle.
Structure Analysis
Base Roller Chain Standard 08A sleeve roller chain (Pitch 12.7mm). Compatible with standard 08A sprockets. Carbon steel or stainless steel options are available.
U-shaped Rubber Cover Pads (Core Component) Clip-on U-shaped rubber blocks fixed on outer plates. Elastic rubber works as the bearing surface instead of bare metal.
Two Common Versions Elastic rubber covered version for cushioning; metal U-shell version for dust protection, which can be fitted with extra rubber mat.
Modular Design Each rubber pad can be replaced individually. No need to replace the whole chain if partial pads wear out.
Key Advantages
Soft contact prevents scratches, collision and sliding of cartons, bottles and plastic containers.
Effective noise reduction during continuous operation.
Low maintenance cost: worn rubber pads can be changed separately.
High compatibility: works with existing standard 08A sprockets for easy equipment upgrading.
Multiple material choices for general industry and food-grade requirements.
echnical Specifications & Material Options
| Parameter / Feature | Standard Specification | Customization Available |
| Chain Pitch | 12.7 mm / 0.5 inch (08B Series) | Custom Pitches On Request |
| Top Profile Shape | U-Shaped Rubber Cover (Snap-On / Vulcanized) | Flat Top / Ridge / V-Shape |
| Rubber Pad Material | NBR (Nitrile) / EPDM / NR (Natural Rubber) | Polyurethane (PU) / Silicone |
| Hardness Rating | Shore A 70° ± 5° (Optimal Balance of Grip & Wear) | Shore A 50° – 85° |
| Temperature Range | NBR: -20°C to +100°C | EPDM: -40°C to +130°C | High-Temp Silicone (Up to +200°C) |
| Key Performance Properties | Oil resistant (NBR), Weather/UV resistant (EPDM), Anti-Scratch | Anti-Static / Flame Retardant |
| Base Chain Material | Carbon Steel (Standard) / Nickel-Plated / Stainless Steel (304/316) | Zinc Plated / Special Alloy |
Key Features & Industrial Benefits
Damage-Free Surface Protection: Specially formulated soft top chain pads eliminate direct metal-to-product contact, preventing costly surface defects in glass and wood handling.
High Friction & Anti-Slip Stability: The U-shaped vulcanized rubber elastomer delivers exceptional grip on inclined or high-speed conveyor lines.
Exceptional Wear & Oil Resistance: Available in NBR, EPDM, and NR compounds engineered to withstand industrial lubricants, oil exposure, UV radiation, and continuous friction.
Modular & Snap-On Maintenance: Securely fastened rubber profiles ensure long service life and easy replacement, minimizing machine downtime.
Standardized Base Chain Specs: Built on precision-engineered 08B roller chain (12.7mm pitch) compliant with ISO/DIN/ANSI standards for seamless integration with existing sprockets and drives.
Industrial Applications & Solutions
Glass Processing & Handling: Smooth, non-marking transit for insulated glass units, solar panel glass, and automotive windshields without scratching coated surfaces.
Woodworking & Furniture Manufacturing: Transporting varnished wood panels, veneered boards, and cabinetry parts where surface integrity is critical.
Electronics & Appliance Assembly: Safe conveying of sensitive electronic enclosures, TV frames, and polished metal housings.
Ceramic & Tile Industry: Buffer protection for glazed tiles and fragile ceramic components during sorting and packaging.
Automotive & Metal Stamping: Scuff-free movement of stamped sheet metal parts, chrome trims, and painted components.
Selection & Custom Options
Chain material: Carbon steel 08A / SUS304 stainless steel 08A
Rubber material: NBR, food-grade silicone, high-temperature resistant elastomer
Structure: Single-side or double-side U rubber covers; customizable rubber thickness
Extra service: Anti-slip texture on rubber surface, customized attachments
Matching accessory: Standard 08A sprockets
Hot Tags: pitch 12.7mm u-shaped rubber cover chain, China pitch 12.7mm u-shaped rubber cover chain manufacturers, suppliers, factory
