Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel bucket elevator chain in China, featured by quality products and good service. If you're going to wholesale advanced stainless steel bucket elevator chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

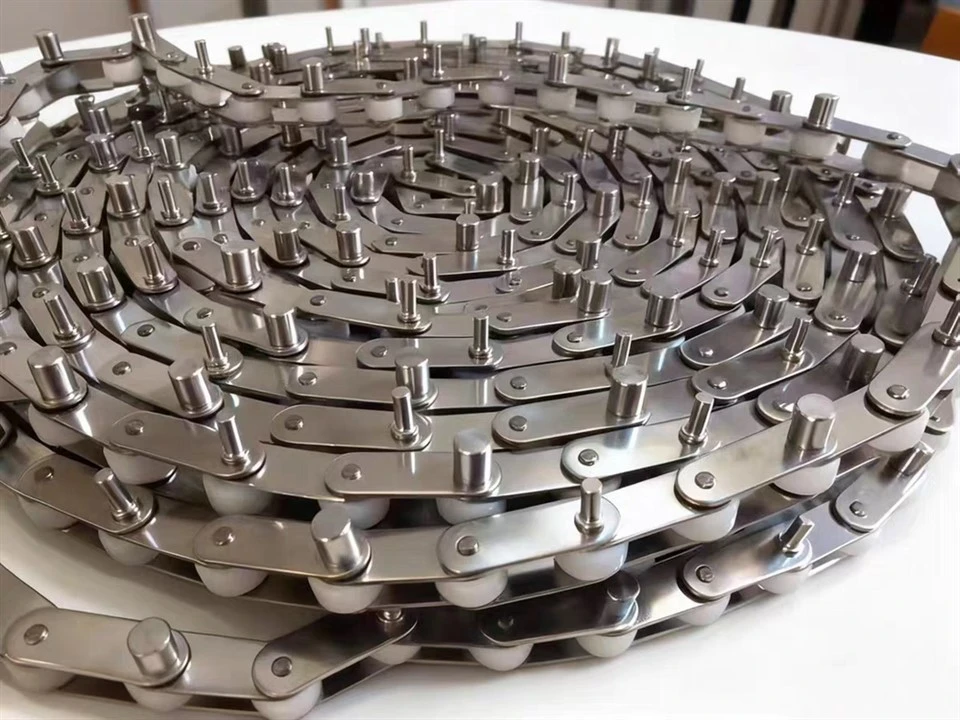

Structure Analysis
- Stainless Steel Chain Body Standard sleeve roller chain construction. All metal parts resist moisture and rust. Single-strand or double-strand designs are available according to load capacity.
- Extended Outer Pins (Core Feature) Solid pins protrude outward from outer plates to install buckets. Buckets can be fastened by nuts, and bucket spacing is adjustable.
- Support Wear-resistant Rollers Rollers installed between link plates roll along guide rails to support the weight of chains, buckets and materials. It greatly reduces sliding friction.
Key Features & Advantages
Low Friction & Long Service Life Rolling support avoids direct contact between chain plates and guides, lowering power consumption and wear.
Flexible Bucket Installation Extended pins allow easy assembly and disassembly of buckets; adjustable bucket pitch.
Corrosion Resistance & Easy Sanitization Stainless steel withstands washing and humid environments, compliant with food and grain processing hygiene standards.
Stable Vertical Operation Rollers play a guiding role to prevent chain deviation and reduce material spilling during lifting.
Limitations
Not recommended for continuous ultra-high temperature service; rollers will accelerate abrasion.
Fine powder may enter chain joints; regular cleaning is required.
Tensile strength must be verified for extremely high lifting height to avoid chain elongation.
Typical Applications
Grain & cereal bucket elevators, nut & dry food vertical conveying, frozen food lifting, aquatic processing lines, chemical particle transport, pharmaceutical raw material handling.
Selection & Custom Options
Material: SUS304 for general use; SUS316L for salty & weak acid environments
Base Chain Model: Modified from C2040, C2050, 10A, 12A, 16A etc.
Pins: Custom pin diameter & protruding length; single-side or double-side extension
Rollers: Nylon rollers (low temperature & low noise) / stainless steel rollers (high wear resistance)
Extra Options: Threaded pins, anti-loosening structure, surface polishing
