Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of c2080-2-20t type a in China, featured by quality products and good service. If you're going to wholesale advanced c2080-2-20t type a made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Identification

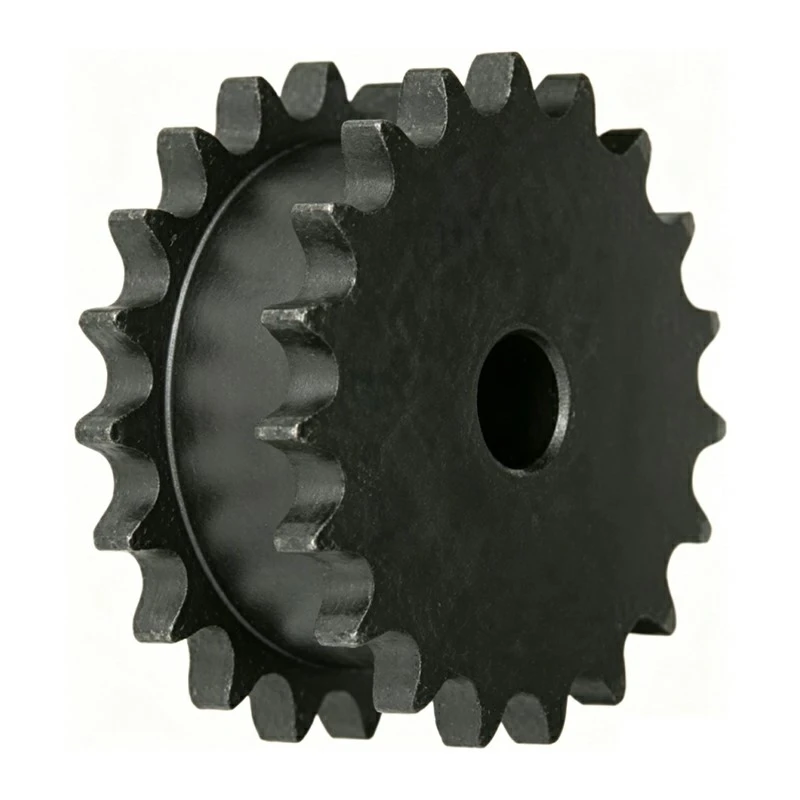

| Model | C2080-2-20T Type A |
| Alias | 2080A20-2 |
| Matching Chain | C2080 / A2080 double‑pitch roller chain (double row) |
| Structure | Double row, 20 teeth, Type A (plain plate, no hub) |
| Standards | ANSI B29.4, ISO 1275‑1 |
|
Parameter |
Value (inch) |
|
Number of teeth |
20 |
|
Pitch |
2.000" (50.80 mm) |
|
Pitch diameter |
6.472" |
|
Outside diameter |
6.910" |
|
Caliper diameter |
5.845" |
|
Tooth width (per row) |
0.575" |
|
Total face width |
~1.200" (for double‑row) |
|
Standard plain bore |
15/16" (0.938") |
Product Introduction
1. Compatibility Check
This Type A hubless double-row sprocket is professionally manufactured to match C2080 and A2080 double-pitch roller chains. It is configured for two parallel chain strands and fully complies with ANSI and ISO standards, offering excellent interchangeability for direct replacement of standard parts.
2. Why Choose This Model
The double-row structure evenly disperses heavy loads, greatly improving overall load capacity for rigorous working conditions. Its 20-tooth profile enables smooth meshing, cutting down chain abrasion and realizing low-vibration, quiet operation. Made of premium 1045 carbon steel, the teeth are induction hardened to HRC 48–55, delivering outstanding durability against harsh industrial environments. The hubless Type A design features a compact, lightweight structure, which saves installation space and adapts well to flanged and through-bore mounting layouts.
3. Best For These Applications
It is widely applicable to conveyor systems, material handling equipment, packaging machinery and other medium-to-heavy duty industrial transmission facilities, serving as a reliable long-term operating component.
