Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of lumber conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced lumber conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

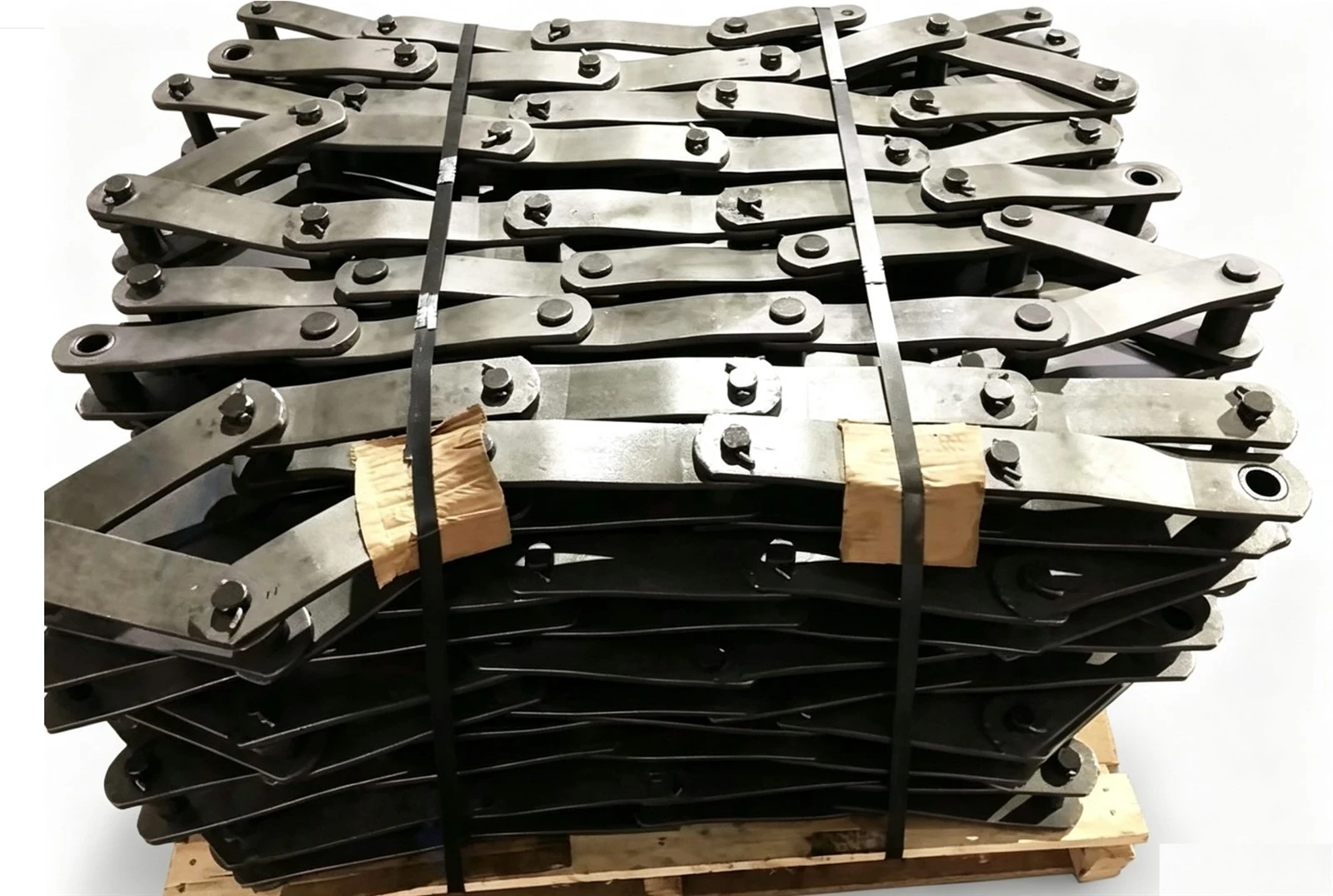

81X Series Log Puller Conveyor Chain | Pitch 66.27mm (2.609"), Straight Side Plate Roller Chain, Wood Industry Standard
The 81X series (81X, 81XH, 81XHH, 81XHD) is the most standard and commonly used model for log puller conveyor chains. It is a straight side plate roller chain with a pitch of 66.27 mm (2.609"), serving as the industry standard for log pullers and wood processing applications.
|
Item |
Unit |
81X |
81XH |
81XHH |
81XHD |
|
Chain Model |
- |
81X |
81XH |
81XHH |
81XHD |
|
Pitch |
mm (in) |
66.27 (2.609) |
66.27 (2.609) |
66.27 (2.609) |
66.27 (2.609) |
|
Roller Diameter |
mm (in) |
22.99 (0.905) |
22.99 (0.905) |
22.99 (0.905) |
22.99 (0.905) |
|
Inner Width |
mm (in) |
26.97 (1.062) |
27.78 (1.093) |
27.78 (1.093) |
27.78 (1.093) |
|
Pin Diameter |
mm (in) |
11.10 (0.437) |
11.10 (0.437) |
11.10 (0.437) |
11.10 (0.437) |
|
Pin Length |
mm (in) |
49.0 (1.929) |
60.7 (2.389) |
65.6 (2.582) |
63.0 (2.480) |
|
Link Plate Thickness |
mm (in) |
4.0 (0.157) |
6.3 (0.248) |
7.94 (0.312) |
6.3 (0.248) |
|
Link Plate Height |
mm (in) |
28.5 (1.122) |
31.3 (1.234) |
31.3 (1.234) |
35.0 (1.378) |
|
Weight per Meter |
kg/m |
11.2 |
17.5 |
20 |
19 |
|
Ultimate Tensile Strength |
kN (lbf) |
124.5 (28000) |
206.8 (46400) |
237.0 (53300) |
225.0 (50600) |
How to Select 81X Series Log Puller Conveyor Chain
When choosing log puller conveyor chains, start with working load and operating conditions. The standard 81X series is the preferred option for wood processing lines.
For light to medium duty and general log conveying, pick 81X. Choose 81XH for moderate heavy loads and frequent operation. 81XHH is designed for extra heavy-duty, high-load and harsh working scenarios. If you need deeper link plates for improved load capacity and impact resistance, 81XHD is the ideal choice.
All models feature uniform pitch and reliable structure. Prioritize chain strength, wear resistance and anti-shock performance to match your equipment load, running speed and material type, ensuring stable operation and long service life.
