Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of double pitch side bow conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced double pitch side bow conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Basic Parameters
|
Parameter |
Symbol |
Specification |
Unit |
|
Chain No. |
- |
C2050K1 |
- |
|
Pitch |
P |
25.4 |
mm |
|
Roller Diameter |
d₁ |
10.16 |
mm |
|
Inner Width |
b₁ |
7.85 |
mm |
|
Pin Diameter |
d₂ |
5.08 |
mm |
|
Pin Length |
L |
19.6 |
mm |
|
Plate Height |
h₂ |
15.09 |
mm |
|
Plate Thickness |
t |
2.03 |
mm |
|
Attachment Type |
- |
K1 (Single-side) |
- |
|
Attachment Hole Dia. |
d₄ |
5.4 |
mm |
|
Ultimate Tensile Strength |
Q |
26.7 |
kN |
|
Weight per Meter |
q |
1.1 |
kg/m |
Key Notes
K1 Attachment:
Single-side bent plate with mounting holes, for fixing trays, fixtures, or accessories.
Material:
Standard carbon steel (stainless steel 304/316 optional).
Application:
Food processing, packaging lines, general material handling conveyors.

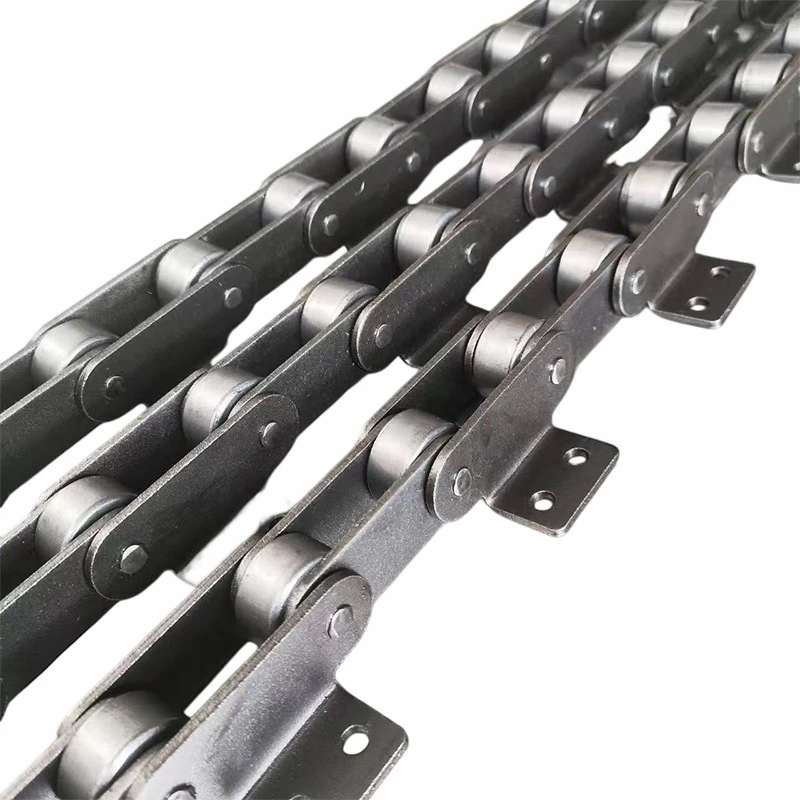

C2050K1 Double Pitch Side Bow Conveyor Chain
Application
C2050K1 double pitch side bow conveyor chain combines double-pitch structure and lateral bending performance, tailored for conveying systems with curved tracks and multi-directional turning routes.
Built with sturdy link plates and reliable K1 attachments, it features great load capacity, low friction and outstanding wear resistance, ensuring stable operation during long-term continuous work.
It is widely adopted in automated packaging lines for sorting and transporting packaged goods.
It also serves logistics distribution centers, warehouse conveying equipment and food processing production lines.
Besides, it fits light industrial assembly machinery and indoor material handling systems, performing well in routes with frequent turns and complex layouts.
FAQ
Q1: Is this chain interchangeable with standard C2050 sprockets?
A1: Yes, it fully matches standard C2050 series sprockets for easy installation and replacement.
Q2: What causes abnormal wear during operation?
A2: Excessive chain tension or sprocket misalignment will accelerate wear. Regular adjustment and alignment are required.
Q3: Can it work in humid environments?
A3: Standard models suit normal humid conditions. For severely corrosive scenarios, please select surface-treated versions.
Q4: How to extend its service life?
A4: Apply regular lubrication and routine inspection to prevent loosening and deformation.
