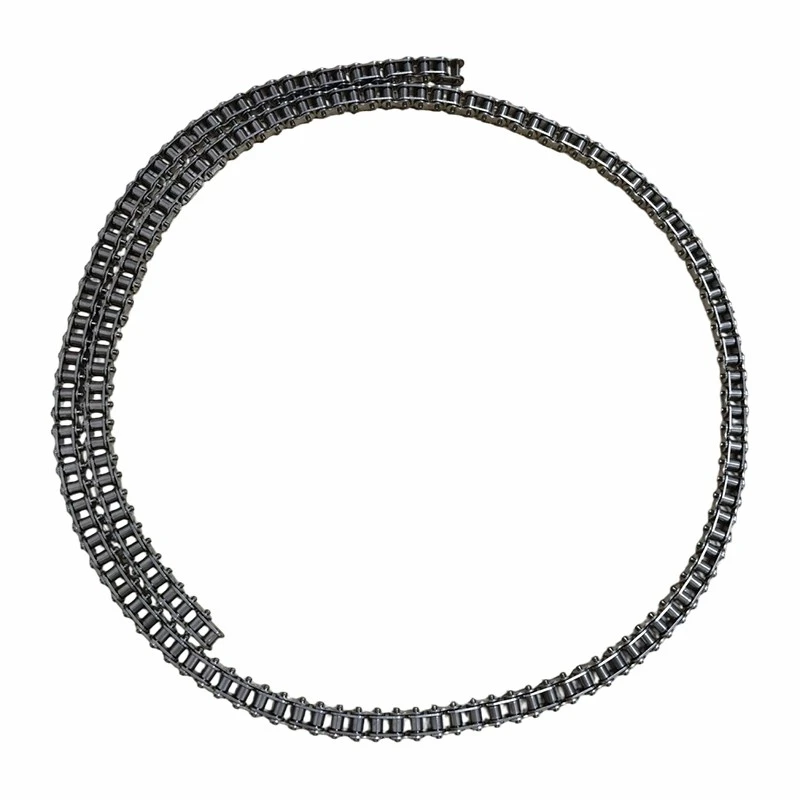

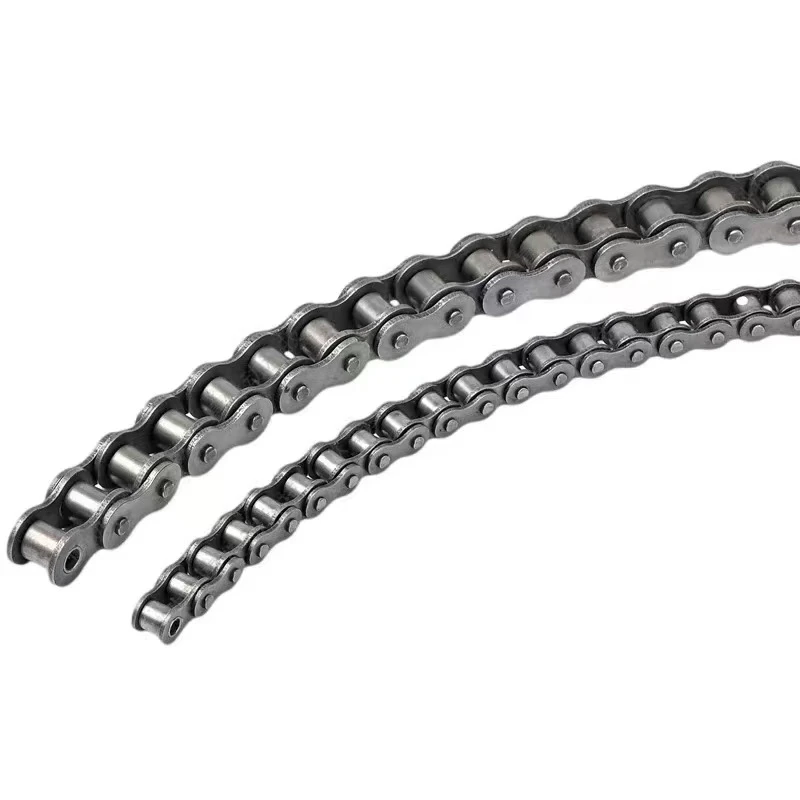

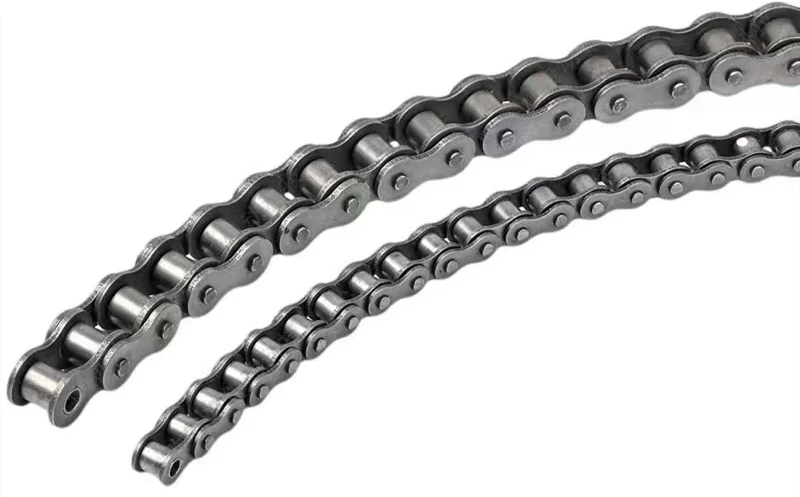

Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel side bow roller chains in China, featured by quality products and good service. If you're going to wholesale advanced stainless steel side bow roller chains made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Common Models
Short Pitch Side Bow Roller Chains (SB Series)
ANSI Series
40SBSS – Pitch: 12.7 mm 1/2"
50SBSS – Pitch: 15.875 mm 5/8"
60SBSS – Pitch: 19.05 mm 3/4"
63SBSS – Pitch: 19.05 mm, wide and heavy-duty type
80SBSS – Pitch: 25.4 mm (1")
ISO/DIN Series
06BSBSS – Pitch: 9.525 mm
08BSBSS – Pitch: 12.7 mm
10BSBSS – Pitch: 15.875 mm
12BSBSS – Pitch: 19.05 mm
16BSBSS – Pitch: 25.4 mm

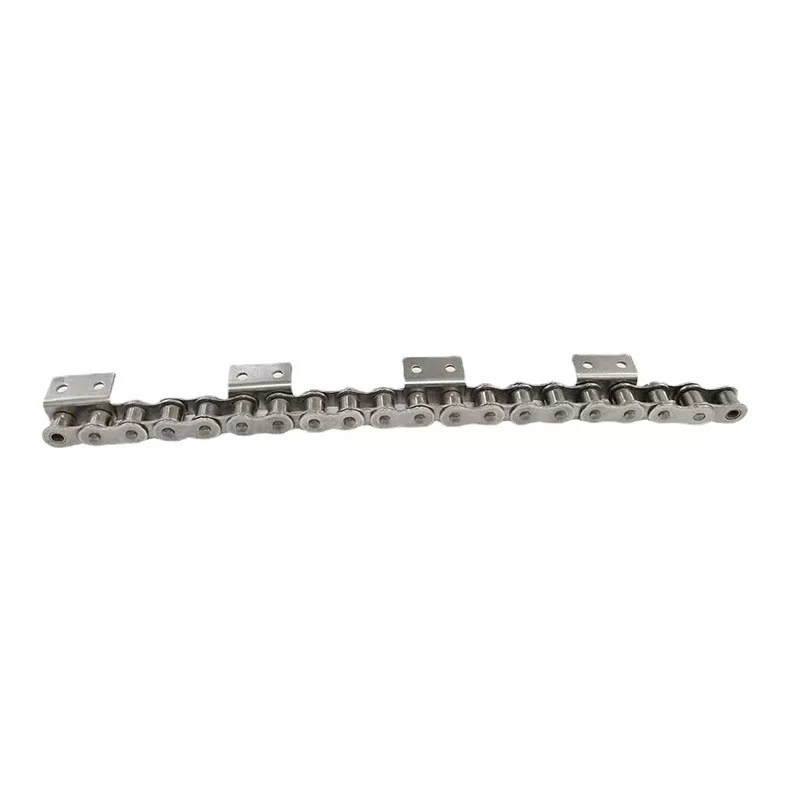

Models with Attachments (For Curved Conveyors & Production Lines)
- 08BSB-F1 / F2
- 10ASB-F1 / F2 / F4
- 12ASB-F1
- 50SB-F1 / F2
- 63SB-F1
Double Pitch Stainless Steel Side Bow Chains (C2000 Series)
- C2040SBSS – Pitch: 25.4 mm
- C2050SBSS – Pitch: 31.75 mm
- C2060SBSS – Pitch: 38.10 mm
- C2080SBSS – Pitch: 50.80 mm
Stainless Steel Side Bow Top Chains (881/981 Series, Widely Used in Food, Beverage & Glass Industries)
881 Standard Side Bow Top Chains
SS881M-K325 – Pitch: 38.1 mm, Slat Width: 82.6 mm
SS881M-K450 – Slat Width: 114.3 mm
SS881M-K600 – Slat Width: 152.4 mm
SS881M-K750 – Slat Width: 190.5 mm
881T / 981 / 981T (Hook Type & Narrow Pitch Type)
SS881T: Hook design for stable positioning
SS981: Narrow pitch with flexible side bow performance
SS981T: Narrow pitch combined with hook structure
Selection Guide for Stainless Steel Side Bow Chains
Select stainless steel side bow chains based on working environment, load and bending radius. Choose 304SS for general anti-rust scenarios and 316SS for acid, alkali and salt corrosion environments. Match standard short pitch, double pitch or top chain models with suitable attachments to ensure smooth, stable and low-wear curved conveying operation.
