Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of double-row stainless steel roller sprocket in China, featured by quality products and good service. If you're going to wholesale advanced double-row stainless steel roller sprocket made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Technical Parameters
|
Parameter |
Specification |
|
Model |
P100-2-11T Double-Row Sprocket |
|
Standard |
DIN/ISO Heavy Duty Conveyor Chain Standard |
|
Compatible Chain |
P100 Double-row heavy-duty conveyor chain |
|
Pitch (P) |
100 mm |
|
Tooth Count (Z) |
11 teeth |
|
Pitch Diameter (PD) |
352.68 mm |
|
Outside Diameter (OD) |
365.00 mm (typical) |
|
Roller Diameter (dr) |
30.00 mm (standard for P100 chain) |
|
Tooth Width (per row) |
22.00 mm (typical) |
|
Total Width (W) |
70.00 mm (including clearance between two rows, typical) |
|
Hub Type |
Double disk with through hub (customizable) |
|
Hub Diameter (typical) |
180 mm (customizable) |
|
Hub Length (typical) |
200 mm (customizable) |
|
Bore Type |
Pilot bore, custom finished bore with keyway available |
|
Material |
C45 / 40Mn2 carbon/alloy steel |
|
Heat Treatment |
Induction hardened teeth (HRC 45–55) |
|
Surface Treatment |
Black oxide / as-machined finish (optional) |
|
Application |
Heavy-duty conveyors, mining equipment, cement plants, bulk material handling |

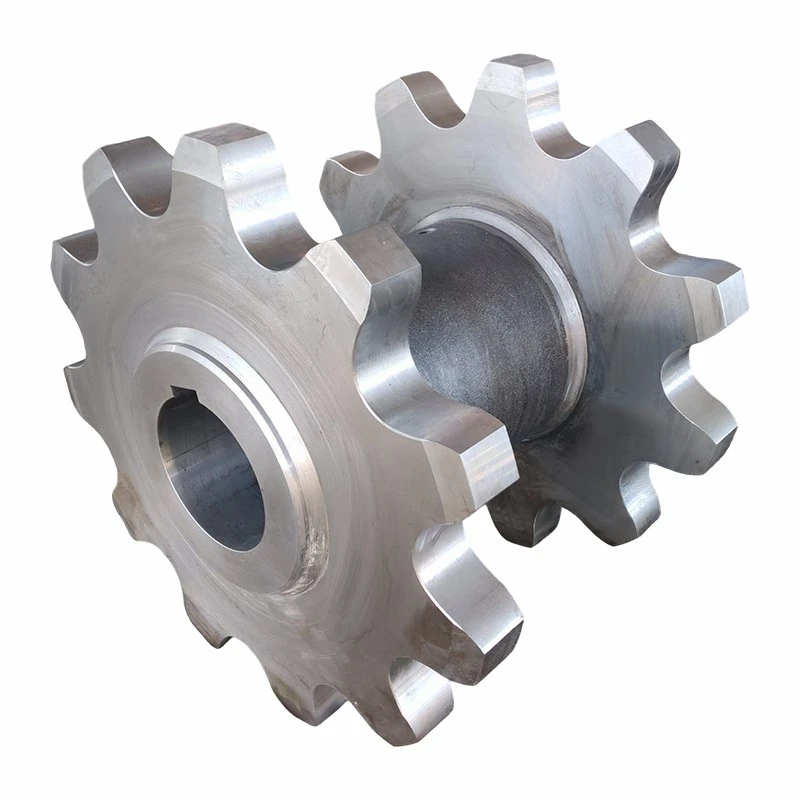

P100-2-11T Double-Row Conveyor SprocketFor heavy-duty P100 double-row conveyor chains. Hardened teeth for wear resistance. Integrated hub design. Ideal for mining, cement plants, and bulk material handling.
Selection Guide for Double-Row Stainless Steel Roller Sprocket
When selecting a double-row stainless steel roller sprocket, start by confirming chain specifications to ensure perfect matching. Check the chain model, pitch and row number first, as accurate dimensions guarantee smooth meshing and stable power transmission.
Next, choose the proper hub type including Type A, B and C based on your shaft structure and installation space. Measure shaft diameter and bore size to pick a well-fitted bore. Consider working conditions too: stainless steel material is ideal for humid, corrosive, food-grade and outdoor environments.
Evaluate load demands as the double-row design offers higher load capacity than single-row styles. Confirm tooth quantity according to your required speed and torque. All our products follow standard dimensions for easy replacement. Follow these steps to select a durable, well-matched sprocket for your industrial equipment.
