Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of triple row stainless steel sprocket in China, featured by quality products and good service. If you're going to wholesale advanced triple row stainless steel sprocket made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Standard Chain Series & Parameters
ANSI Standard (Inch Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
#25 |
6.35 mm |
25-3 SS |
10T – 60T |
Light-duty conveyors, small food processing equipment |
|
#35 |
9.525 mm |
35-3 SS |
10T – 60T |
Packaging machinery, light industrial transmission |
|
#40 |
12.7 mm |
40-3 SS |
10T – 60T |
General industrial conveyors, automation lines |
|
#50 |
15.875 mm |
50-3 SS |
10T – 60T |
Medium-load conveying, food & beverage production |
|
#60 |
19.05 mm |
60-3 SS |
10T – 60T |
Logistics systems, medium heavy-duty machinery |
|
#80 |
25.4 mm |
80-3 SS |
10T – 60T |
Heavy-load transport, warehouse handling equipment |
|
C2040 / C2050 / C2060 / C2080 (Double Pitch) |
25.4 ~ 50.8 mm |
C2040-3 SS / C2080-3 SS |
12T – 30T |
Long-distance heavy-duty conveyors, bulk material handling |
ISO / DIN Standard (Metric Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
06B |
9.525 mm |
06B-3 SS |
10T – 60T |
Food and pharmaceutical production lines |
|
08B |
12.7 mm |
08B-3 SS |
10T – 60T |
Automated assembly lines, light industrial drives |
|
10B |
15.875 mm |
10B-3 SS |
10T – 60T |
Medium industrial equipment, chemical processing lines |
|
12B |
19.05 mm |
12B-3 SS |
10T – 60T |
Heavy-duty conveyors, large logistics facilities |
|
16B |
25.4 mm |
16B-3 SS |
10T – 60T |
Heavy power transmission, agricultural machinery |
Material & Surface Treatment
304 Stainless Steel
Reliable corrosion resistance, for general industrial and common sanitary environments.
316 / 316L Stainless Steel
Superior anti-corrosion performance, ideal for chemical, marine and strict hygiene scenarios.
Induction Hardening (Optional)
Teeth hardened to 40–55 HRC to enhance wear resistance and extend service life.
Surface Finish
Polished or passivated surface, easy to clean and meets food-grade hygiene requirements.

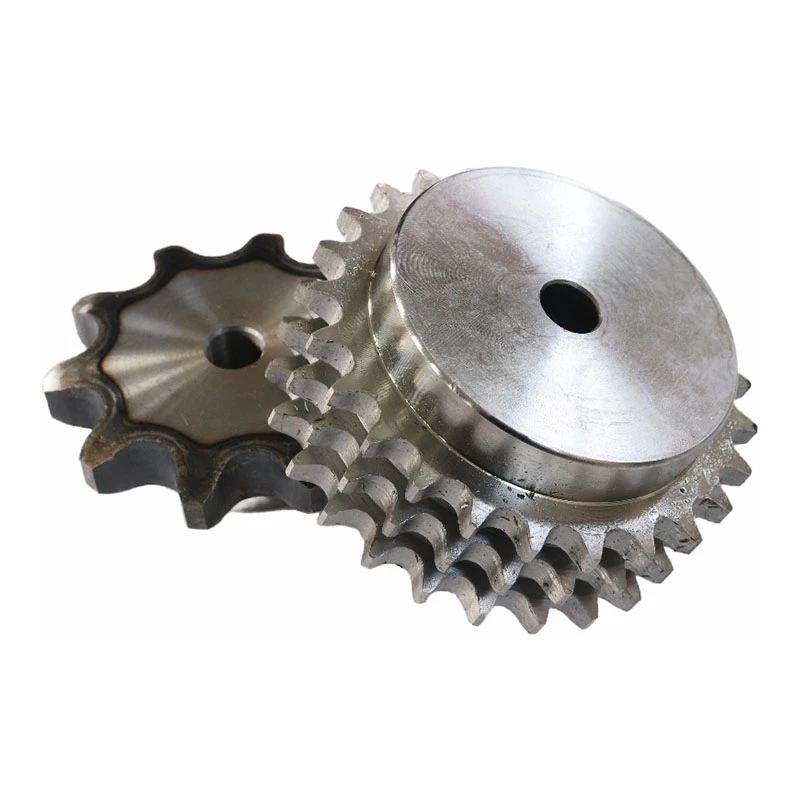

Triple Row Stainless Steel Sprocket: Applications and Selection Guide
Triple row stainless steel sprockets are high-performance power transmission components, featuring enhanced load capacity, excellent corrosion resistance and stable running performance compared with single and double row sprockets. Made of premium 304 or 316 stainless steel, they adapt to harsh working conditions and serve as core parts for heavy-duty and hygienic industrial transmission systems.
This type of sprocket is widely applied in multiple key industries. In food, dairy and pharmaceutical industries, its rust-proof and easy-to-clean properties meet strict sanitary standards for conveyor and processing equipment. It is also extensively used in packaging automation, agricultural machinery, marine equipment and light mining industries, reliably handling heavy-load material transmission, high-speed operation and humid, dusty working environments.
Scientific selection ensures optimal service life and working efficiency. First, confirm chain pitch and tooth quantity to achieve precise matching with triple row chains. Second, select appropriate stainless steel materials: 304 for conventional humid environments and 316 for high-corrosion scenarios with acid and alkali exposure. Third, consider load demands and operating speed to pick sprockets with hardened tooth surfaces for improved wear resistance. Finally, verify installation size and shaft hole specifications to fit equipment assembly requirements. Durable and versatile, it is an ideal choice for high-stability industrial transmission systems.
