Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of single row stainless steel sprocket in China, featured by quality products and good service. If you're going to wholesale advanced single row stainless steel sprocket made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Main Chain Standards & Matching Sizes
ANSI Standard (Inch Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
#25 |
6.35 mm |
25-1 SS |
10T – 60T |
Mini conveyors, food machinery |
|
#35 |
9.525 mm |
35-1 SS |
10T – 60T |
Packaging equipment, light industry |
|
#40 |
12.7 mm |
40-1 SS |
10T – 60T |
General conveyors, automation lines |
|
#50 |
15.875 mm |
50-1 SS |
10T – 60T |
Medium-duty conveyors, food processing |
|
#60 |
19.05 mm |
60-1 SS |
10T – 60T |
Logistics, heavy packaging machines |
|
#80 |
25.4 mm |
80-1 SS |
10T – 60T |
Heavy-load conveying, warehouse systems |
|
C2040 / C2050 / C2060 / C2080 (Double Pitch) |
25.4 ~ 50.8 mm |
C2040-1 SS / C2080-1 SS |
12T – 30T |
Long-distance conveyors, food & logistics |
ISO / DIN Standard (Metric Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
06B |
9.525 mm |
06B-1 SS |
10T – 60T |
Food & packaging machinery |
|
08B |
12.7 mm |
08B-1 SS |
10T – 60T |
Automated conveying, light machinery |
|
10B |
15.875 mm |
10B-1 SS |
10T – 60T |
Medium industrial equipment, chemical lines |
|
12B |
19.05 mm |
12B-1 SS |
10T – 60T |
Heavy-duty conveyors, logistics |
|
16B |
25.4 mm |
16B-1 SS |
10T – 60T |
Heavy transmission, agricultural machinery |
Hub Types
Type A:
Plain plate, no hub. Suitable for compact installation, pilot bore for custom machining.
Type B:

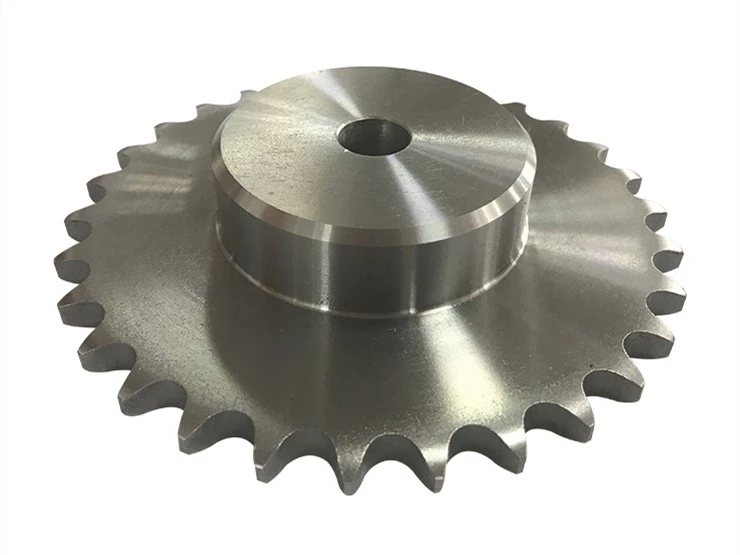

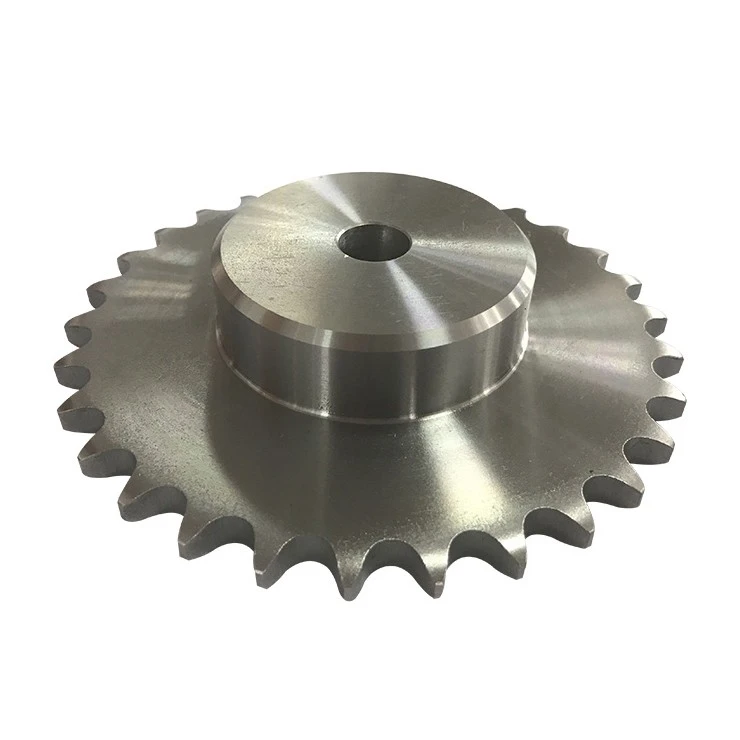

Single side hub. Most common design for standard shaft mounting.
Type C:
Double side hub. High rigidity for heavy load and high speed operation.
Bore Options
We provide two practical bore types to suit different installation needs.
The pilot bore is our standard design, which can be further processed on site to add keyways and set screw holes according to your actual shaft requirements.

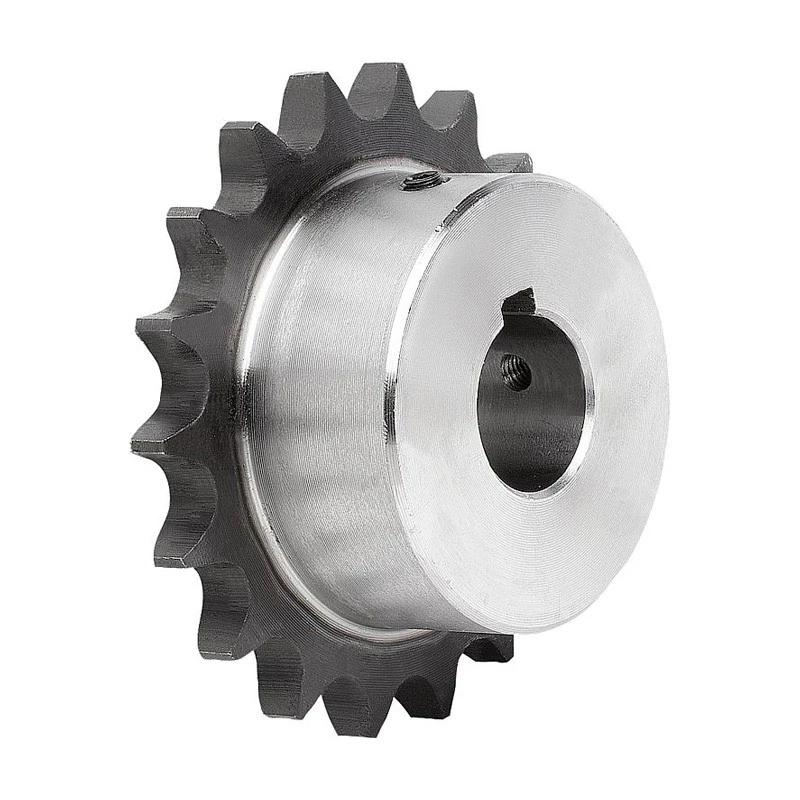

The finished bore comes fully pre-machined with standard bore size, keyway and set screws.
It allows direct mounting without extra processing, saving assembly time and ensuring stable connection for quick replacement and routine use.
