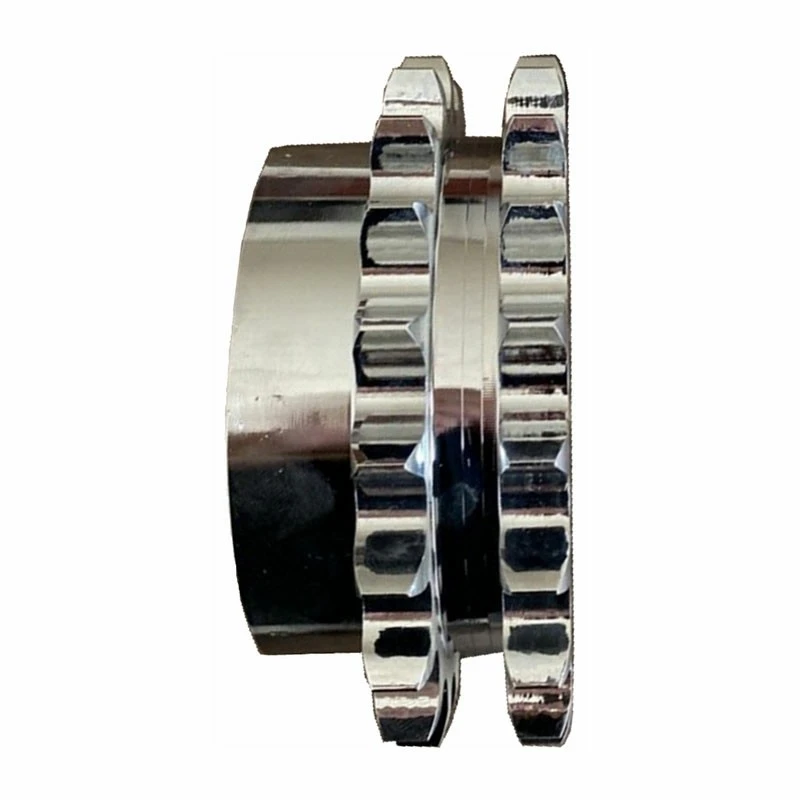

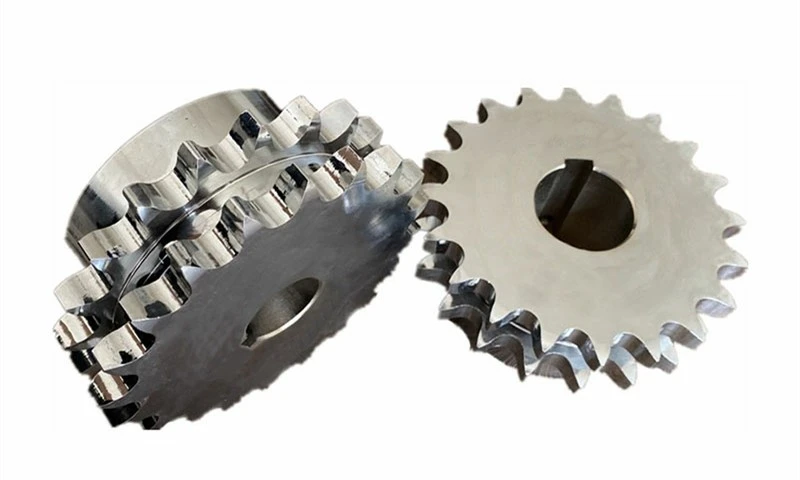

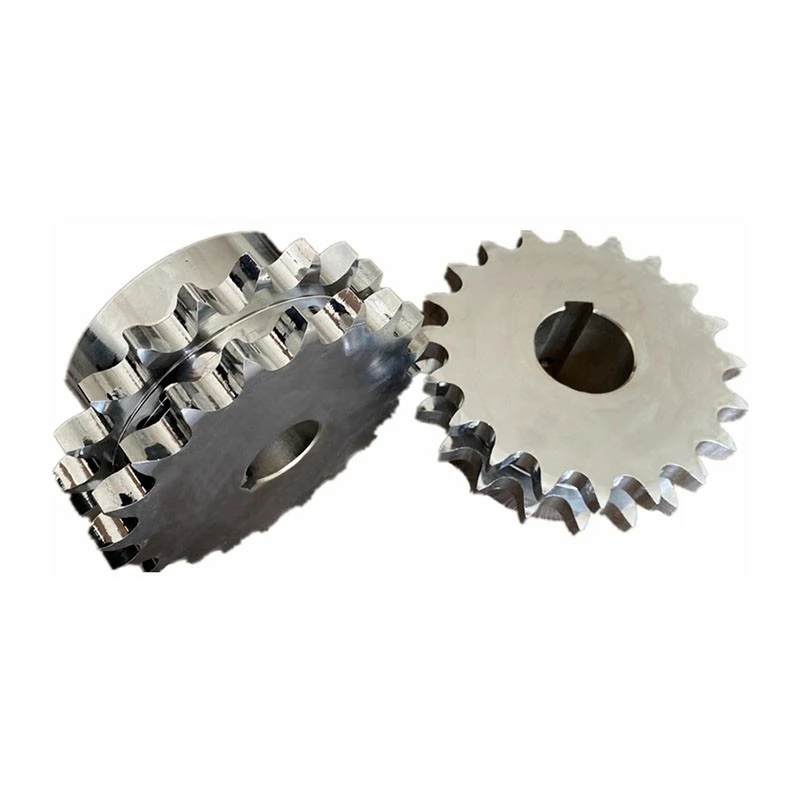

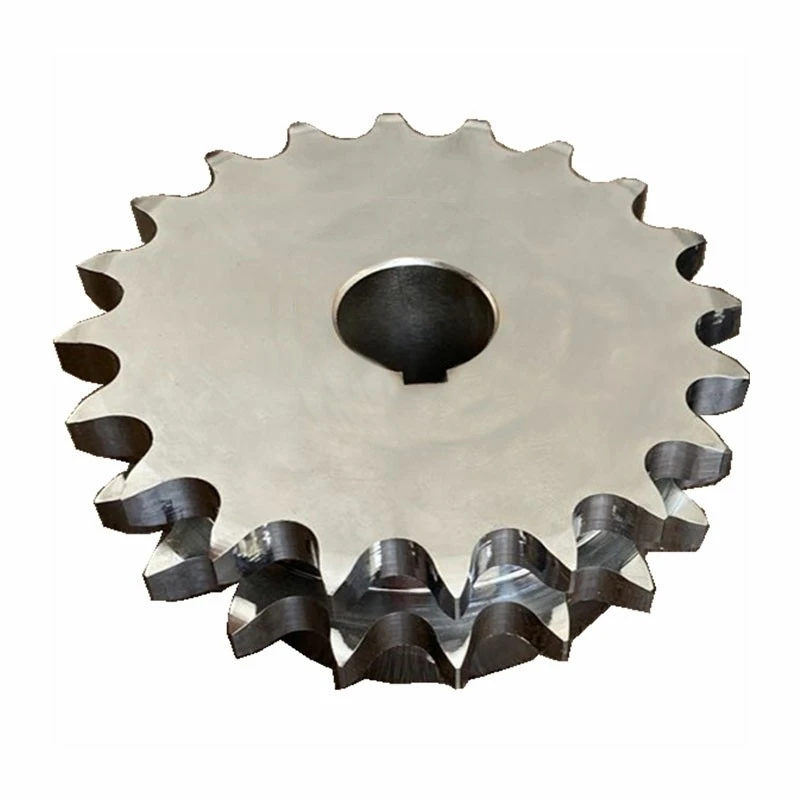

Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of double row stainless steel sprocket in China, featured by quality products and good service. If you're going to wholesale advanced double row stainless steel sprocket made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.
Standard Chain Series & Dimensions
ANSI Standard (Inch Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
#25 |
6.35 mm |
25-2 SS |
10T – 60T |
Small conveyors, light food machinery |
|
#35 |
9.525 mm |
35-2 SS |
10T – 60T |
Packaging lines, light industrial equipment |
|
#40 |
12.7 mm |
40-2 SS |
10T – 60T |
General conveyor systems, automation |
|
#50 |
15.875 mm |
50-2 SS |
10T – 60T |
Medium-load conveying, food processing |
|
#60 |
19.05 mm |
60-2 SS |
10T – 60T |
Logistics, medium-heavy duty machinery |
|
#80 |
25.4 mm |
80-2 SS |
10T – 60T |
Heavy-load transport, warehouse facilities |
|
C2040 / C2050 / C2060 / C2080 (Double Pitch) |
25.4 ~ 50.8 mm |
C2040-2 SS / C2080-2 SS |
12T – 30T |
Long-distance conveyors, material handling |
ISO / DIN Standard (Metric Series)
|
Chain Model |
Pitch |
Sprocket Model |
Common Teeth Range |
Typical Applications |
|
06B |
9.525 mm |
06B-2 SS |
10T – 60T |
Food & pharmaceutical machinery |
|
08B |
12.7 mm |
08B-2 SS |
10T – 60T |
Automated production lines |
|
10B |
15.875 mm |
10B-2 SS |
10T – 60T |
Medium industrial drives, chemical equipment |
|
12B |
19.05 mm |
12B-2 SS |
10T – 60T |
Heavy-duty conveyors, logistics systems |
|
16B |
25.4 mm |
16B-2 SS |
10T – 60T |
Heavy transmission, agricultural machinery |
Hub Types
Type A:
Plain plate without hub. Compact structure, pilot bore for custom machining.
Type B:
Single-sided hub. Widely used for general shaft mounting.
Type C:
Double-sided hub. High structural strength for heavy load and high-speed operation.
Bore Options
Pilot Bore: Standard version, available for reaming, keyway and set screw processing on request.
Finished Bore: Precisely machined standard bore with keyway and set screws, ready for direct installation.
FAQ for Double Row Stainless Steel Sprocket
Q1: What are its main features? This double row sprocket is made of premium stainless steel. It boasts excellent rust resistance, corrosion resistance and high durability, suitable for harsh working environments. The double row design provides higher load capacity and stable power transmission.
Q2: Where is it commonly used? It is widely applied in food processing, beverage equipment, chemical machinery, marine facilities and outdoor conveyor systems, where moisture, dust or corrosive substances exist.
Q3: Which chain does it match? It fits standard double row roller chains of the corresponding specification. Please select the matched chain model to avoid abnormal wear and noise.
Q4: Can we do customization? Yes. We support custom bore size, keyway, tooth number and hub types according to your requirements.
Q5: Any maintenance tips? Keep proper lubrication regularly. Clean surface dirt timely to maintain smooth operation and prolong service life.
