Anhui Huihuang Chain Transmission Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel nylon roller conveyor chain in China, featured by quality products and good service. If you're going to wholesale advanced stainless steel nylon roller conveyor chain made in China, welcome to get pricelist and free sample from our factory. We also accept customized orders.

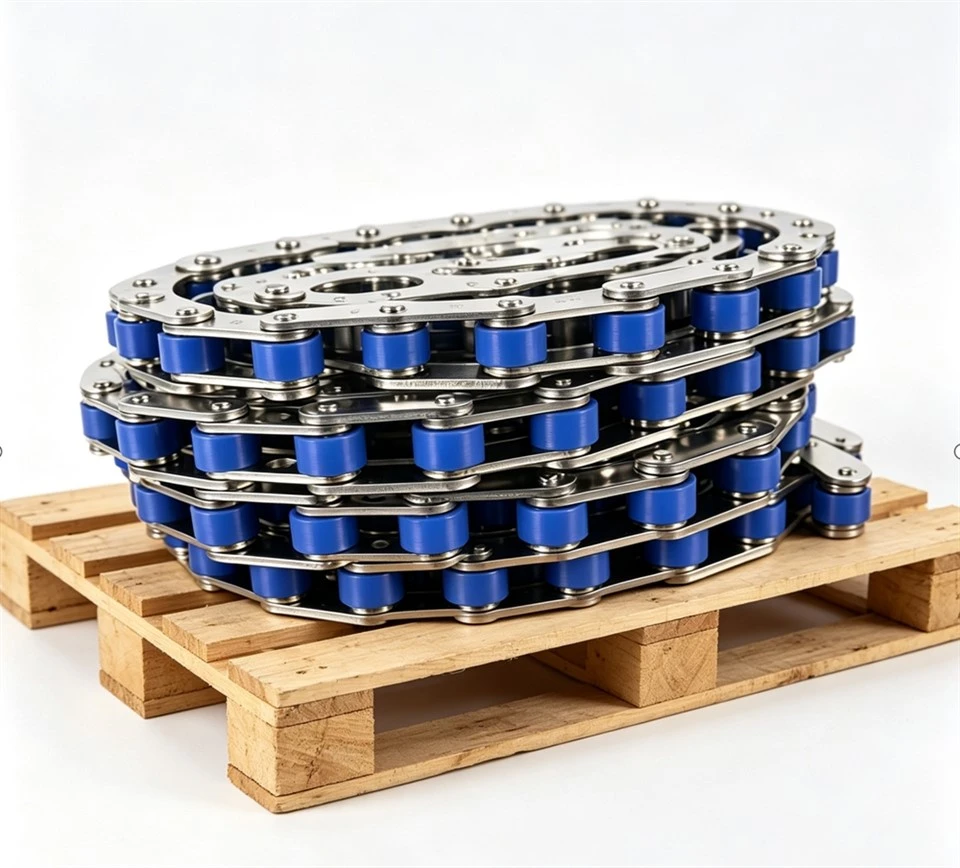

Structure Analysis
- Stainless Steel Chain Body Heavy-duty stainless steel inner & outer plates, solid pins and sleeves provide high tensile strength and rust resistance, suitable for humid and washing working conditions. Pre-drilled holes on chain plates allow installation of baffles, tooling trays and carrying plates.
- External Nylon Rollers (Core Feature) Blue engineering nylon rollers are mounted on both ends of pins. They do not engage with sprockets. The chain sleeves mesh with sprockets for driving, while nylon rollers work only as supporting travelling wheels. They separate chain plates from guide rails and prevent metal-to-metal abrasion.
- Customizable Options Single-side or double-side rollers available. Roller material can be changed to PU, POM or stainless steel. Various bent attachments can be welded on chain plates upon request.
Key Features & Advantages
Low Noise & Low Friction Rolling contact of nylon rollers greatly reduces operating noise compared with metal sliding friction.
Self-lubricating, Food Industry Friendly Nylon rollers have self-lubricating property. Continuous oil lubrication is not required, meeting oil-free conveying standards for food & beverage industry.
Protect Guide Rails Soft nylon rollers will not scratch aluminum or stainless steel guide profiles.
Excellent Anti-Corrosion Performance SUS304 stainless steel resists moisture, weak acid and alkali, ideal for washing lines, aquatic processing and packaging conveyors.
Flexible Expandability Pre-drilled holes support mounting of different attachments to build circulating tooling transport systems.
Limitations
Working temperature range for nylon rollers: -20℃ ~ 80℃. Steel rollers are required for high-temperature applications.
Avoid contact with strong solvents and concentrated acid & alkali, which will damage plastic rollers.
Not recommended for ultra-heavy load; select metal roller version for heavy-duty transportation.
Typical Applications
Food & beverage production lines, can & bottled water conveying, packaging lines, automated assembly accumulation lines, fruit & vegetable washing conveyors, daily chemical transport, light workpiece circulation transfer lines.
Selection & Custom Options
Material: Standard SUS304; SUS316L for seawater and heavy corrosive environments
Roller Layout: Single-side nylon rollers / double-side nylon rollers
Roller Material: PA Nylon / POM / PU / Stainless Steel
Attachments: Bent lugs, support plates, side guards and other non-standard accessories
